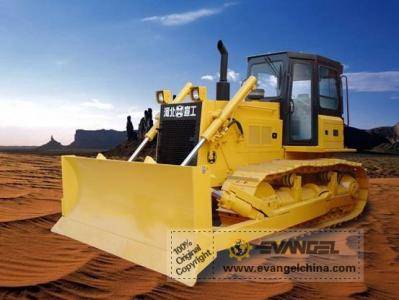

SD6G Bulldozer

Features:

SD6G bulldozer is 160 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic controls. It is equipped with Shangchai C6121 diesel engine manufactured under Caterpillar license. The engine has the characteristics of big torque reserve coefficient and capacity against over-load. The torque converter is a hydro-mechanical converter whose power is divided outside, which has the characteristics of wide high efficiency range. Steering and braking can be controlled with the same control lever. Braking system utilizes hydraulic boosting structure, which is convenient and labor-saving. The final drive gear has the characteristics of large displacement coefficient value. This kind of design raises bearing capacity and prolongs the useful time. The final drive also utilizes the structure that its bearing clearance is free of adjustment, which is convenient for service. The equalizer bar utilizes free lubricating structure to decrease service cost.

Specifications:

Operating weight

16.2t

Ground pressure (at operating weight)

54kpa

Track contact length

2990mm

Overall dimensions(L×W×H)

5037×3297×3077mm (without ripper)

Grade ability

Latitude 30 °   Transverse 25°

Ground clearance

445*mm

Diesel Engine

Model

Turbocharged C6121 diesel engine

Type

Water-Cooled, single-row, vertical, 4-stroke-cycle

Rated speed

1900rpm

Flywheel power

131kw/160HP

Start mode

24V starter motor

Number of cylinders-bore*stroke

6-121*152mm

Displacement

10.5**

Fuel system

Direct injection with individual adjust system free injection pumps and valve
