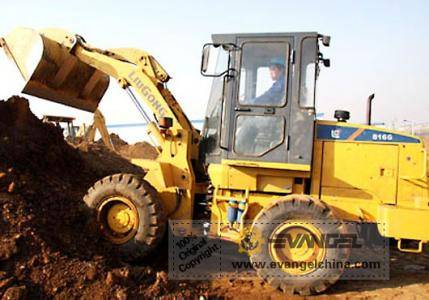

CLG816G Wheel Loader
Features & Benefits
(1) Built for Efficiency
Turbo air filter removes over 90% of dust and impurities, reducing engine wear and fuel consumption extending engine service life and improving engine efficiency.
Radiator fan is directly engine driven and provides strong efficient cooling.
38 degree angle of articulation for working in tight spaces.
Low fuel consumption engine that doesn't sacrifice any power.
Very low cycle time of 8.6 second, great for efficient for smooth strong gear changes.
Meets EU stage IIIA/EPA tier 3 emission requirements.
(2) Easy to Maintain
Hydraulic system easily checked after removing front cover.
Easy engine access, convenient placement of key parts and fluid refill points.
(3) Always Reliable
Power cut-off function prevents damage to drive components.
Double sealed O-rings used in Hydraulic system.
Stress analysis tested to strengthen weak points.
Sub frame and rear axle swingable by 11 degrees .
Front frame box structure highly torsion and damage resistant.
Parts, Attachments and Service to count on.
World class suppliers of key components.
Long life high performance multi valve from Zhejiang Linhai.
Long life highly efficient Shantui transmission and converter.
(4) Operator Comfort and Safety
Adjustable seat, and ergonomically designed placement of instruments.
Comfortable A/C and heated operator environment.
Standard pilot control.
Convenient detachable cab.
Optional ROPS/FOPS cab.
UV resistance glass.
Cigarette lighter works as electrical outlet.
Specifications
Engine |
YT4A2-24 |
Gross Power |
50.2 kW @ 2,400 rpm |
Net Power |
47.8 kW (64hp) @ 2,400 rpm |
Operating Weight |
5,600 kg |
Standard Bucket Size |
0.8 m3 |
Standard Breakout Force |
46 kN |
Standard Dump Clearance |
2,173 mm |
