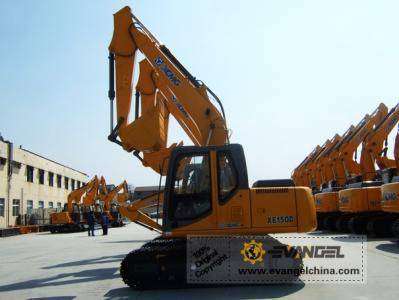

XE150D Excavator



Parameter:



Model

XE150D

Bucket capacity

m3

0.6

Standard bucket width

mm

1,000

Operation weight

kg

14,400

Dimension (in transportation)

Overall length

mm

7,801

Overall width

mm

2,590

Overall height

mm

2,850

Min. clearance

mm

478

Engine

Model

4BTAA3.9

Total displacement

L

3.927

Rated output power

KW/rpm

85.4/2200

Digging performance

Max. digging height

mm

8,641

Max. dumping height

mm

6,181

Max. digging depth

mm

5,538

Max. vertical digging depth

mm

4,727

Max. digging radius

mm

8,296

Boom deflection angle

  °



Min. slew radius

mm

2,325

Min. rear slew radius

mm

2,325

Bucket digging force

kn

85

Track type

Steel

Track width

mm

600

Travel system

Track length

mm

3,660

Wheel base

mm

2,910

Track gauge

mm

1,990

Travel speed (Gear I/II)

km/h

5.21/3.16

Gradeability

%

70

Slew speed

rpm

12.3

Bulldozing plate

Bulldozing plate width

mm



Bulldozing plate height

mm



Lifting distance

mm



Hydraulic pump type

Variable pump×2      +gear pump×1

Slew motor type

Piston hydraulic motor

Travel motor type

Piston hydraulic motor

Fuel tank capacity

L

250

Hyraulic oil tank capacity

L

130
