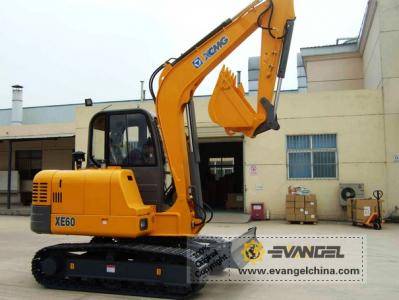

XE60 Excavator
Parameter:
|
Model |
XE60 |
||
|
Bucket capacity |
m3 |
0.23 |
|
|
Standard bucket width |
mm |
700 |
|
|
Operation weight |
kg |
5,920 |
|
|
Dimension(in transportation) |
Overall length |
mm |
5,850 |
|
Overall width |
mm |
1,885 |
|
|
Overall height |
mm |
2,584 |
|
|
Min. clearance |
mm |
369 |
|
|
Engine |
Model |
4TNV94L |
|
|
Total displacement |
L |
3.054 |
|
|
Rated output power |
KW/rpm |
39/2200 |
|
|
Digging performance |
Max. digging height |
mm |
5,660 |
|
Max. dumping height |
mm |
3,970 |
|
|
Max. digging depth |
mm |
3,830 |
|
|
Max. vertical digging depth |
mm |
2,680 |
|
|
Max. digging radius |
mm |
6,130 |
|
|
Boom deflection angle |
° |
|
|
|
Min. slew radius |
mm |
2,450 |
|
|
Min. rear slew radius |
mm |
1,650 |
|
|
Bucket digging force |
kn |
42.5 |
|
|
Track type |
Steel |
||
|
Track width |
mm |
400 |
|
|
Travel System |
Track length |
mm |
2,548 |
|
Wheel base |
mm |
1,985 |
|
|
Track gauge |
mm |
1,480 |
|
|
Travel speed (Gear I/II) |
km/h |
3.8/2.1 |
|
|
Gradeability |
% |
70 |
|
|
Slew speed |
rpm |
9 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
1,880 |
|
Bulldozing plate height |
mm |
363 |
|
|
Lifting distance |
mm |
402/456 |
|
|
Hydraulic pump type |
Variable pump×1 +gear pump×1 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Fuel tank capacity |
L |
120 |
|
|
Hydraulic oil tank capacity |
L |
85 |
|
