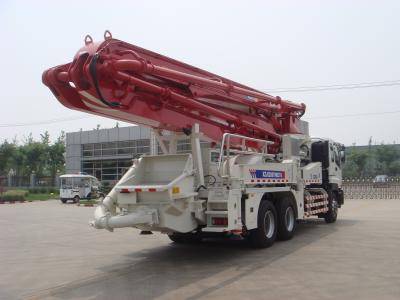

HB37A Truck-Mounted Concrete Pump is modern construction equipment for pouring concrete consecutively.
It has features of good maneuverability, short preparation time, high efficiency, good construction quality,
less pollution of the environment. It is widely used in large-scale infrastructure constructions such as bridge,
electric power plant, steel works, water disposal plant and high-rise building constructions.
HB37A Truck-Mounted Concrete Pump comprises superstructure and chassis.
Components imported from WAITZINGER Company Germany,
multi-way valves imported from HAWE Company Germany and center pumping mechanism
with technology of PM Company Germany available in the superstructure and CXZ51Q chassis made
by ISUZU Japan as well as drive system with 4-series oil pump contribute to its high drive ability and reliability.
|
No. |
Item |
Unit |
Parameter |
|
1 |
Max. speed |
km |
90 |
|
2 |
Min. turning diameter |
m |
18.4 |
|
3 |
Brake distance |
m |
7 |
|
4 |
Approach angle |
° |
31 |
|
5 |
Departure angle |
° |
12 |
|
6 |
Chassis model |
|
CXZ51Q ( Japan ) |
|
7 |
Total weight |
kg |
28150 |
|
8 |
1st axle load |
kg |
6780 |
|
9 |
2nd, 3rd axle load |
kg |
21220 |
|
10 |
Engine model |
|
6WF1 |
|
11 |
Max. Engine power |
kW |
287 |
|
12 |
Max. Engine torque |
N.m |
1862 |
|
13 |
Max. grade-ability |
% |
38 |
|
14 |
Fuel consumption limit |
L/100km |
34 |
|
15 |
Outline dimensions (Length´ Width ´Height) |
mm |
11990´2490´3900 |
Technical Data for Pumping Operation
|
No. |
Item |
Unit |
Parameter |
|
1 |
Theoretical output |
m3/h |
138/90 |
|
2 |
Max. delivery pressure |
MPa |
8.7/13 |
|
3 |
Reach height |
m |
37.4 |
|
4 |
Reach depth |
m |
23.7 |
|
5 |
Front outrigger transverse span |
mm |
7280 |
|
6 |
Rear outrigger transverse span |
mm |
6600 |
|
7 |
Outrigger longitudinal span |
mm |
6860 |
|
8 |
Delivery pipe diameter |
mm |
125 |
|
9 |
Remote control distance |
m |
100 |
|
10 |
Placing boom slewing range |
° |
370 |
