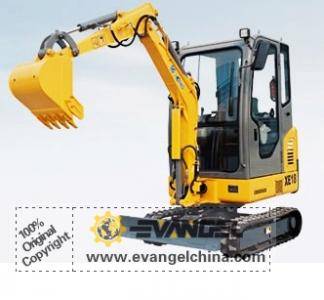

XE18 Excavator
Parameter:
|
Model |
XE18 |
||
|
Bucket capacity |
m3 |
0.044 |
|
|
Standard bucket width |
mm |
475 |
|
|
Operation weight |
kg |
1780 |
|
|
Dimension(in transportation) |
Overall length |
mm |
3760 |
|
Overall width |
mm |
1300 |
|
|
Overall height |
mm |
2405 |
|
|
Min. clearance |
mm |
180 |
|
|
Engine |
Model |
3TNV82A |
|
|
Total displacement |
L |
1.33 |
|
|
Rated output power |
KW/rpm |
16.5/2200 |
|
|
Digging performance |
Max. digging height |
mm |
3,653 |
|
Max. dumping height |
mm |
2,515 |
|
|
Max. digging depth |
mm |
2,285 |
|
|
Max. vertical digging depth |
mm |
2,067 |
|
|
Max. digging radius |
mm |
3,915 |
|
|
Boom deflection angle |
° |
70/50° |
|
|
Min. slew radius |
mm |
1674 |
|
|
Min. rear slew radius |
mm |
1190 |
|
|
Bucket digging force |
kn |
13.9 |
|
|
Track type |
Rubber |
||
|
Track width |
mm |
230 |
|
|
Travel System |
Track length |
mm |
1578 |
|
Wheel base |
mm |
1217 |
|
|
Track gauge |
mm |
1070 |
|
|
Travel speed (Gear I/II) |
km/h |
4.4/2.4 |
|
|
Gradeability |
% |
58 |
|
|
Slew speed |
rpm |
11 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
1300 |
|
Bulldozing plate height |
mm |
235 |
|
|
Lifting distance |
mm |
236/204 |
|
|
Hydraulic pump type |
Variable pump×2 +gear pump×1 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Fuel tank capacity |
L |
20 |
|
|
Hydraulic oil tank capacity |
L |
29 |
|
