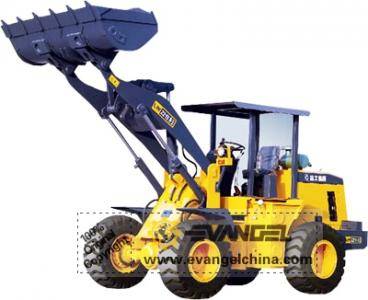

LW221 Mini Loader
Features:
With reasonable design, the machine adopts hydraulic mechanical drive, and four-wheel drive, featuring larger drive force and digging force; with small turning radius and convenient and agile operation, it is suitable for narrow working area.
Z type bucket linkage, single arm, lifting cylinder of high pivot, strong digging force and short working cycle time, and higher working efficiency.
Priority of on-demand oil supply for all hydraulic load-sensing steering and priority of single pump valve working hydraulic system, economic in energy-saving.
With openable rear hood side door and full visibility, the cab provides the comfortable working environment and advantaged maintenance condition.
Parameter:
|
Rated load t |
2.2 |
|
Dumping height m |
2.65 |
|
Dumping reach m |
0.94 |
|
Time for boom raising s |
6 |
|
Total cycling time s |
11 |
|
Max. breakout fcrce KN |
52 |
|
Articulation angle ° |
35 ±1 |
|
Wheel base m |
2.24 |
|
Tread m |
1.71 |
|
Engine model |
LR4108G75 |
|
Rated power KW |
64 |
|
Rated speed r/min |
2400 |
|
Dimensions(L×W×H) m |
5.78×2.2×2.98 |
|
Operating weight t |
6.5 |
|
Bucket capacity m3 |
1.2 |
