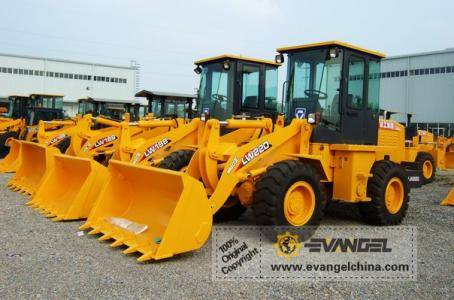

LW220 Mini Loader
Features:
LW220 wheel loader is a new model developed by XCMG with the characteristic of high efficency, beauty and reliability.
The whole machine is reasonably designed. Hydraulic mechanical transmission and four wheels driven make it have bigger breakout force and driven force. What is more, it is flexible and easy to handle. The turning radius is small, especially suitable for working in narrow sites.
The full hydraulic load sensing steering system and single–pump-valve-priority hydraulic working system make the whole machine energy saving.
The all around driver’s cab and openable hood provide comfortable working conditions and favorable maintenance conditions
Parameter:
| Overall dimensions(L*W*H) mm | 5520*1960*2850 |
| rated weight t | 2 |
| Dumping clearance mm | 2350/2700/3000 |
| Dumping reach mm | 900 |
| Breakout fore KN | 50 |
| Wheel base mm | 2200 |
| Tread mm | 1490 |
| Model | LR4108G75 |
| Rated power kw | 64 |
| Rated speed r/min | 2400 |
| Ist(F/R) km/h | 6/6 |
| 2nd(F/R) km/h | 24/24 |
| Total cycling time s | ＜10 |
| Tyres | 16/70-20 |
| Operating weight t | 6 |
