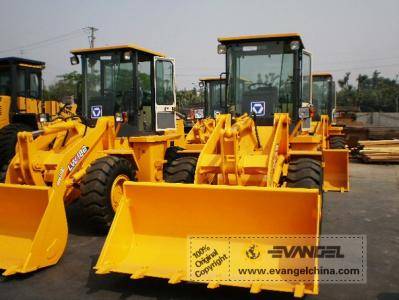

LW188 Mini Loader



Features:



With reasonable design, the machine adopts hydraulic mechanical drive, and four-wheel drive, featuring larger drive force and digging force; with small turning radius and convenient and agile operation, it is suitable for narrow working area.

Z type bucket linkage, single arm, lifting cylinder of high pivot, strong digging force and short working cycle time, and higher working efficiency.

Priority of on-demand oil supply for all hydraulic load-sensing steering and priority of single pump valve working hydraulic system, economic in energy-saving.

With openable rear hood side door and full visibility, the cab provides the comfortable working environment and advantaged maintenance condition.



Parameter:



Overall dimensions(L×W×H)

 5520×1960×2850mm

 Bucket capacity

 0.9m3

 Rated load

 1.8t

 Dumping clearance

 2700mm

 Dumping reach

 900mm

 Breakout fore

 50kn

 Wheel base

 2200mm

 Tread

 1490mm

 Model

 YTR4105g91

 Rated power

 55kw

 Rated speed

 2400r/min

 Total cycling time

 10s

 Tyres

 16/70-20

 Operating weight

 5.4t
