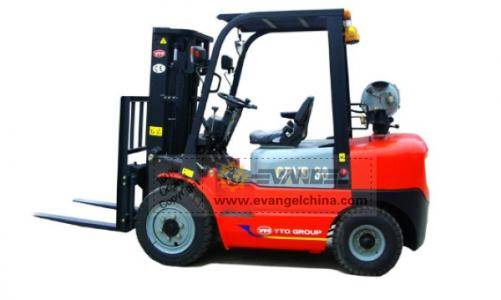

YTO Gas Forklift CPQD20/25/30 and LPG Forklift CPYD20/25/30

Speciality parameter	Model					CPQD20	CPYD20	CPQD25	CPYD25	CPQD30	CPYD30
	Power type					Gasoline	LPG	Gasoline	LPG	Gasoline	LPG
	Rated capacity				kg	2000	2000	2500	2500	3000	3000
	Load center			d	mm	500	500	500	500	500	500
	Lift height			h2	mm	3000	3000	3000	3000	3000	3000
	Mast tilt angle (forward/backward)			a/b	Deg	6/12	6/12	6/12	6/12	6/12	6/12
	Front overhang			L3	mm	465	465	465	465	485	485
	Wheel-base			L4	mm	1600	1600	1600	1600	1700	1700
	Tread(front/rear)			b4/b5	mm	960/970	960/970	960/970	960/970	1000/980	1000/980
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	440/500	440/500	440/500	440/500	360/450	360/450
	Lower speed (with/without load)				mm/s	(laden)<600 ,(without load)>300
	Travel speed (with/without load)				km/h	18/19	18/19	18/19	18/19	18/19	18/19
	Max. gradeability (laden)				%	20	20	20	20	20	20
	Max. Towing (with/without load)				kN	16/13	15/12	17/14	16/13	19/15	18/14
	Weight Distribution with load(pront/rear)				kg	4665/635	4700/650	5455/745	5500/750	6350/870	6395/875
	Weight Distribution without load(pront/rear)				kg	1255/2045	1270/2080	1400/2300	1425/2325	1600/2620	1620/2650
Power, transmission and others	Engine	Model				K21	K21	K21	K21	K25	K25
		Manufacturer				Nissan	Nissan	Nissan	Nissan	Nissan	Nissan
		Rated power			kw	31.2/2250	31.2/2250	31.2/2250	31.2/2250	37.4/2300	37.4/2300
		Rated rotation				143.7/1600	143.7/1600	143.7/1600	143.7/1600	176.5/1600	176.5/1600
		Displacement				2.065	2.065	2.065	2.065	2.488	2.488
	Battery	Voltage			V	12	12	12	12	12	12
	Battery	Capacity			Ah	100	100	100	100	100	100
	Gearbox	Transmission type				Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Gearbox	Gears,speed (front/rear)				I/I	I/I	I/I	I/I	I/I	I/I
		type				Pneumatic tyres
		Model	Pront			7.00-12-12PR		7.00-12-12PR		28*9-15-14PR
		Model	Rear			6.00-9-10PR		6.00-9-10PR		6.5-10-10PR
Others	Dead.weight				kg	3300	3350	3700	3750	4220	4270
	Free lift height			h4	mm	160	160	160	160	165	165
	Fork	ThicknessWidthLength		cba	mm	401251070	401251070	401251070	401251070	451251070	451251070
	Overall dimensions	Overall length(without forks)		L2	mm	2480	2480	2600	2600	2770	2770
		Overall width		b1	mm	1150	1150	1150	1150	1225	1225
		Overall height	Extended height(mast)	h1	mm	4030	4030	4030	4030	4225	4225
			Lowered height (mast)	h3	mm	2000	2000	2000	2000	2070	2070
			Overhead guard	h7	mm	2120	2120	2120	2120	2160	2160
	Min. turning radius			Wa	mm	2170	2170	2240	2240	2410	2410
	Min. under ground clearance	Under mast		m1	mm	105	105	105	105	120	120
	Min. under ground clearance	Center of wheel-base		m2	mm	150	150	150	150	160	160
Descriptions:
1.The engine enjoys a good power performance.
The engine has a good performance; it has virtues of operation in stability, low noise, low vibration and low fuel consumption.
2.Low carbon emission
The liquefied gas fuel has achieved a low carbon emission ,which plays an active role in the environmental protection.
3.Precise design and stringent test
All parts of the "fuel elements" are made by OEM of IMPCO,USA,its performance is guaranteed by an accurate design and stringent test.At meanwhile,it has a big potential vaporized value since the ignition point of liquefied gas is higher than gasolineas well as self-cooling functions,wherewith its safety is reinforced greatly.
4.Easy,reliable and comfortable operation.
Adopting gasoline or liquefied gas as a fuel,two types of fuel conversion is easy,reliable and operated comfortably.
5. All-day,All-week system
Big capacity air storage tank is fit for 24hours/7days (all-day all-week system.) working.

All technical parameters are subject to change without prior notice because of technical improvements.
