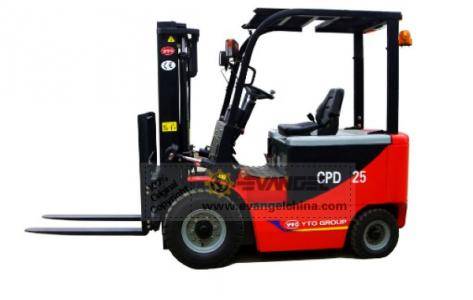

YTO Battery Forklift CPD15/20/25/30/35
| Speciality parameter | Model | CPD10 | CPD15 | CPD20 | CPD25 | CPD30 | CPD35 | ||||
| Power type | Battery | Battery | Battery | Battery | Battery | Battery | |||||
| Rated capacity | kg | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | ||||
| Load center | d | mm | 500 | 500 | 500 | 500 | 500 | 500 | |||
| Lift height | h2 | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||
| Mast tilt angle (forward/backward) | a/b | Deg | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | |||
| Front overhang | L3 | mm | 425 | 425 | 465 | 465 | 486 | 486 | |||
| Wheel-base | L4 | mm | 1370 | 1370 | 1500 | 1500 | 1700 | 1700 | |||
| Tread(front/rear) | b4/b5 | mm | 890/920 | 890/920 | 970/950 | 970/950 | 1000/970 | 1000/970 | |||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | |||||||||
| Parking brake | Mechanical-Hand level | ||||||||||
| Lift speed(with/without load) | mm/s | 260/380 | 260/380 | 240/380 | 240/380 | 280/400 | 260/390 | ||||
| Lower speed (with/without load) | mm/s | (load)600 (without load) 300 | |||||||||
| Travel speed (with/without load) | km/h | 11/13 | 11/13 | 11/12 | 11/12 | 13/15 | 13/15 | ||||
| Max. gradeability (laden) | % | 15 | 10 | 10 | 10 | 13 | 10 | ||||
| Max. Towing (with/without load) | kN | 6/5 | 6.5/5.5 | 9.4/7.5 | 9.8/8 | 11/9 | 9.8/8 | ||||
| Weight Distribution with load(front/rear) | 3350/500 | 3900/600 | 5250/720 | 5900/840 | 6920/1080 | 7570/1180 | |||||
| Weight Distribution without load(front/rear) | 1200/1650 | 1300/1700 | 1720/2250 | 1825/2415 | 2150/2850 | 2230/3020 | |||||
| Power, transmission and others | motor | Driving motor | Model | XQ-5-T | XQ-5-T | XQ-6.3-1T | XQ-6.3-1T | XQ-10-T | XQ-10-T | ||
| Rated power | kw | 5 | 5 | 6.3 | 6.3 | 10 | 10 | ||||
| Rated rotation | r/min | 1480 | 1480 | 1200 | 1200 | 1200 | 1200 | ||||
| Working motor | Model | XQD-7.5-C | XQD-7.5-C | XQD-8.6-C | XQD-8.6-C | XQD-13-C | XQD-13-C | ||||
| Rated power | kw | 7.5 | 7.5 | 8.6 | 8.6 | 13 | 13 | ||||
| Rated rotation | r/min | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | ||||
| Controller | Manufacturer | GE | GE | GE | GE | GE | GE | ||||
| Type | MOSFET | MOSFET | MOSFET | MOSFET | MOSFET | MOSFET | |||||
| Battery | Voltage | V | 48 | 48 | 48 | 48 | 80 | 80 | |||
| Capacity | Ah | 550 | 550 | 630 | 630 | 560 | 560 | ||||
| Size(L*W*H) | mm | 725*982*500 | 725*982*500 | 820*1065*520 | 820*1065*520 | 830*1160*570 | 830*1160*570 | ||||
| Gearbox | Transmission type | Mechanical | |||||||||
| Tyre | type | Pneumatic tyres | |||||||||
| Model | Pront | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28*9-15-14PR | 28*9-15-14PR | ||||
| Rear | 16*6-8-10PR | 16*6-8-10PR | 18*7-8-14PR | 18*7-8-14PR | 18*7-8-14PR | 18*7-8-14PR | |||||
| Others | Dead.weight | kg | 2850 | 3000 | 3970 | 4240 | 5000 | 5220 | |||
| Free lift height | h4 | mm | 135 | 135 | 140 | 140 | 165 | 165 | |||
| Fork | Thickness*Width*Length | c*b*a | mm | 35*100*920 | 35*100*920 | 40*125*1070 | 40*125*1070 | 45*125*1070 | 45*125*1070 | ||
| Overall dimensions | Overall length(without forks) | L2 | mm | 2070 | 2100 | 2380 | 2430 | 2625 | 2650 | ||
| Overall width | b1 | mm | 1070 | 1070 | 1150 | 1150 | 1225 | 1225 | |||
| Overall height | Extended height(mast) | h1 | mm | 4020 | 4020 | 4030 | 4030 | 4220 | 4220 | ||
| Lowered height (mast) | h3 | mm | 1995 | 1995 | 1995 | 1995 | 2200 | 2200 | |||
| Overhead guard | h7 | mm | 2130 | 2130 | 2150 | 2150 | 2250 | 2250 | |||
| Min. turning radius | Wa | mm | 1950 | 1950 | 2050 | 2100 | 2350 | 2350 | |||
| Min. under ground clearance | Under mast | m1 | mm | 110 | 110 | 110 | 110 | 115 | 115 | ||
| Center of wheel-base | m2 | mm | 105 | 105 | 120 | 120 | 135 | 135 | |||
| Battery distribution | |||||||||||
| v/Ah | 48/550 | 48/580 | 48/630 | 80/490 | 80/560 | ||||||
| CPD10 | * | ||||||||||
| CPD15 | * | & | |||||||||
| CPD20 | & | * | |||||||||
| CPD25 | & | * | |||||||||
| CPD30 | & | * | |||||||||
| CPD35 | * | ||||||||||
| "*" | Marked standard distribution | ||||||||||
| "&" | Marked optional distribution | ||||||||||
|
Descriptions: |
|||||||||||
|
1. Dual Motor & Dual Controller |
|||||||||||
|
There are double motors & controllers in this system,which could be controlled and operated separately with a high reliability and maintenance easily. |
|||||||||||
|
2.A ultra-capacity battery array has a longer durability. |
|||||||||||
|
3.Separately Excited Direct Current Motor Control System |
|||||||||||
|
The separately excited direct current control system can achieve a anti-slip function on a slope,reduces the working current fluctuation of battery and motor greatly compared with the conventional excited motorized control system.Therefor the travel speed does not change obviously due to its load. |
|||||||||||
|
4.Hydraulic Dynamic Load Sensoring Technology(HDLT) |
|||||||||||
|
The advanced HDLT & new type of intergrated load sensoring steering,achieve the flow-divided by a single pump,to enable the forklift hydraulic system with a higher efficiency and more energy conservation. |
|||||||||||
|
5.Intelligent Protection System of The Electric Controller |
|||||||||||
|
Intelligent protection system of the electric controller ,e.g. protection in wrong order operation;seat power-failure protection;service brake & steering hold on;an emergency brake in special situations. |
|||||||||||
All technical parameters are subject to change without prior notice because of technical improvements.
