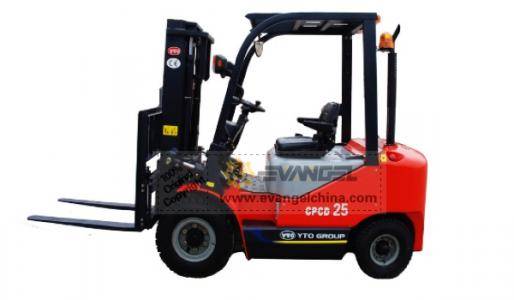

YTO Diesel Forklift CPC15/20/25 CPCD15/20/25
| Speciality parameter | Model | CPC15 | CPCD15 | CPC20 | CPCD20 | CPC25 | CPCD25 | ||||
| Power type | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | |||||
| Rated capacity | kg | 1500 | 1500 | 2000 | 2000 | 2500 | 2500 | ||||
| Load center | d | mm | 500 | 500 | 500 | 500 | 500 | 500 | |||
| Lift height | h2 | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||
| Mast tilt angle (forward/backward) | a/b | Deg | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | |||
| Front overhang | L3 | mm | 425 | 425 | 465 | 465 | 465 | 465 | |||
| Wheel-base | L4 | mm | 1400 | 1400 | 1600 | 1600 | 1600 | 1600 | |||
| Tread(front/rear) | b4/b5 | mm | 890/925 | 890/925 | 960/970 | 960/970 | 960/970 | 960/970 | |||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | |||||||||
| Parking brake | Mechanical-Hand level | ||||||||||
| Lift speed(with/without load) | mm/s | 440/500 | 440/500 | 550/600 | 550/600 | 550/600 | 550/600 | ||||
| Lower speed (with/without load) | mm/s | (laden)<600 (without load)>300 | |||||||||
| Travel speed (with/without load) | km/h | 14/15 | 14/15 | 18/19 | 18/19 | 18/19 | 18/19 | ||||
| Max. gradeability (laden) | % | 20 | 20 | 20 | 20 | 20 | 20 | ||||
| Max. Towing (with/without load) | kN | 13/11 | 13/11 | 16/12 | 16/12 | 17/13 | 17/13 | ||||
| Weight Distribution with load(pront/rear) | 3560/680 | 3560/680 | 4650/890 | 4650/890 | 5220/1000 | 5220/1000 | |||||
| Weight Distribution without load(pront/rear) | 1080/1660 | 1080/1660 | 1360/2180 | 1360/2180 | 1410/2310 | 1410/2310 | |||||
| Power, transmission and others | Engine | Model | NC485BPG | NC485BPG | C490BPG | C490BPG | C490BPG | C490BPG | |||
| Manufacturer | Xinchang | Xinchang | Xinchang | Xinchang | Xinchang | Xinchang | |||||
| Rated power | kw | 30/2600 | 30/2600 | 40/2650 | 40/2650 | 40/2650 | 40/2650 | ||||
| Max. rotation | 131/1800 | 131/1800 | 162/1800 | 162/1800 | 162/1800 | 162/1800 | |||||
| Displacement | 2.27 | 2.27 | 2.54 | 2.54 | 2.54 | 2.54 | |||||
| Battery | Voltage | V | 12 | 12 | 12 | 12 | 12 | 12 | |||
| Capacity | Ah | 100 | 100 | 100 | 100 | 100 | 100 | ||||
| Gearbox | Transmission type | Mechanical | Hydraulic | Mechanical | Hydraulic | Mechanical | Hydraulic | ||||
| Gears,speed (front/rear) | II/II | I/I | II/II | I/I | II/II | I/I | |||||
| Tire | type | Pneumatic tyres | |||||||||
| Model | Pront | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | ||||
| Rear | 5.00-8-8PR | 5.00-8-8PR | 6.00-9-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.00-9-10PR | |||||
| Others | Dead.weight | kg | 2740 | 2740 | 3540 | 3540 | 3720 | 3720 | |||
| Free lift height | h4 | mm | 135 | 135 | 160 | 160 | 160 | 160 | |||
| Fork | Thickness*Width*Length | c*b*a | mm | 35*100*920 | 35*100*920 | 40*125*1070 | 40*125*1070 | 40*125*1070 | 40*125*1070 | ||
| Overall dimensions | Overall length(without forks) | L2 | mm | 2210 | 2210 | 2480 | 2480 | 2600 | 2600 | ||
| Overall width | b1 | mm | 1080 | 1080 | 1150 | 1150 | 1150 | 1150 | |||
| Overall height | Extended height(mast) | h1 | mm | 3975 | 3975 | 4030 | 4030 | 4030 | 4030 | ||
| Lower height(mast) | h3 | mm | 1995 | 1995 | 2000 | 2000 | 2000 | 2000 | |||
| Overhead guard | h7 | mm | 1995 | 1995 | 2120 | 2120 | 2120 | 2120 | |||
| Min. turning radius | Wa | mm | 2050 | 2050 | 2170 | 2170 | 2240 | 2240 | |||
| Min. under ground clearance | Under mast | m1 | mm | 110 | 110 | 105 | 105 | 105 | 105 | ||
| Center of wheel-base | m2 | mm | 140 | 140 | 150 | 150 | 150 | 150 | |||
| Optional engines | |||||||||||
| Model | YT3A2-24 | 498BPG | C240 | 4JG2 | 4TNE98 | ||||||
| Manufacturer | YTO | Xinchang | ISUZU | ISUZU | YANMAR | ||||||
| Rated power | 40.5/2400 | 45/2500 | 34.5/2500 | 44.9/2450 | 42.1/2300 | ||||||
| Rated rotation | 186/1800 | 193/1800 | 134/1800 | 186/1800 | 186/1700 | ||||||
| Displacement | 3.25 | 3.17 | 2.369 | 3.059 | 3.318 | ||||||
| Voltage/Capacity | 12/2*60 | 12/1*100 | 12/1*100 | 12/1*100 | 12/1*100 | ||||||
|
Descriptions: |
|||||||||||
|
1.Intelligent Drive-Monitoring System |
|||||||||||
|
Digital intelligent drive-monitoring system can facilitate obtaining an operating data of forklifts so as to achieve the whole-process control. 2.Full Hydraulic Flexible Steering System |
|||||||||||
|
Full hydraulic steering system can reduce operators fatigue greatly; It uses a horizontal oil cylinder on the compact steering axle and garantees a steering reliability. |
|||||||||||
|
3. Classically Space Frame Structure |
|||||||||||
|
The classically YTO ASF space frame structure applies an ergonomic & aesthetic design with an elegant outlook, a compact structure, and a comfortability in operation. |
|||||||||||
|
4. Well-view mast |
|||||||||||
