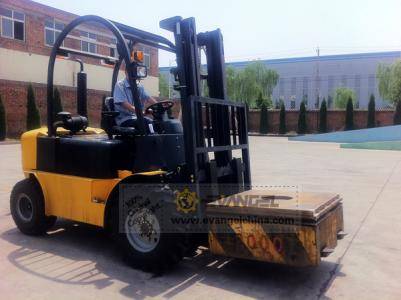

YTO Rough Terrain Forklift (Off-Road Forklift) CPCD20/CPCD25
|
Speciality parameter |
Model |
|
CPCD20 |
CPCD25 |
||
|
Power type |
|
Diesel |
Diesel |
|||
|
Rated capacity |
kg |
2000 |
2500 |
|||
|
Load center |
mm |
500 |
500 |
|||
|
Lift height |
mm |
3300 |
3300 |
|||
|
Mast tilt angle (forward/backward) |
Deg |
5/15 |
5/15 |
|||
|
Front overhang |
mm |
550 |
550 |
|||
|
Wheel-base |
mm |
1850 |
1850 |
|||
|
Tread(front/rear) |
mm |
1250/1205 |
1250/1205 |
|||
|
Performance parameter |
Travel brake |
|
Hydraulic-Foot pedal |
|||
|
Parking brake |
|
Mechanical-Hand level |
||||
|
Lift speed(with/without load) |
mm/s |
400/520 |
400/520 |
|||
|
Lower speed (with/without load) |
mm/s |
(laden)<600 ,without load)>300 |
||||
|
Travel speed (with/without load) |
km/h |
18/23 |
18/23 |
|||
|
Max. gradeability (laden) |
% |
20 |
17 |
|||
|
Power, transmission and others |
Engine |
Model |
|
A495BPG |
A495BPG |
|
|
Manufacturer |
|
Xinchang |
Xinchang |
|||
|
Rated power |
kw |
42/2650 |
42/2650 |
|||
|
Max.rotation |
|
174/1800 |
174/1800 |
|||
|
Displacement |
|
2.98 |
2.98 |
|||
|
Battery |
Voltage |
V |
12 |
12 |
||
|
Capacity |
Ah |
100 |
100 |
|||
|
Gearbox |
Transmission type |
|
Hydraulic |
|||
|
Gears,speed (front/rear) |
|
I/I |
I/I |
|||
|
Tire |
type |
|
Pneumatic tyres |
|||
|
Model |
Pront |
|
11.5/80-15.3-14PR |
|||
|
Rear |
|
27*10-12-12PR |
||||
|
Others |
Dead.weight |
kg |
4500 |
4750 |
||
|
Free lift height |
mm |
120 |
120 |
|||
|
Fork |
Thickness*Width*Length |
mm |
40*125*1070 |
40*125*1070 |
||
|
|
Overall length(without forks) |
mm |
2845 |
2910 |
||
|
Overall width |
mm |
1480 |
1480 |
|||
|
Overall height |
Extended height(mast) |
mm |
4270 |
4270 |
||
|
Lower height(mast) |
mm |
2310 |
2310 |
|||
|
Overhead guard |
mm |
2515 |
2515 |
|||
|
Min. turning radius |
mm |
2900 |
2940 |
|||
|
Min. under ground clearance |
Under mast |
mm |
220 |
220 |
||
|
Center of wheel-base |
mm |
310 |
310 |
|||
|
|
Optional engines: |
|
|
|
|
|
|
|
Model |
4TNE98 |
|
|
|
|
|
|
Manufacturer |
YANMAR |
|
|
|
|
|
|
Rated power KW |
42.1/2300 |
|
|
|
|
|
|
Max.rotation Nm/Rpm |
186/1700 |
|
|
|
|
|
|
Emission standard |
EPA III |
|
|
|
|
|
Descriptions: |
||||||
|
1. A larger underground clearance of the chassis may overcome many kinds of complex terrain working. |
||||||
|
2. Uses the integral-type combination instruments, the fuse box places in left side of the steering wheel, which advantage for the replacement. Also installed with a cigar lighter. |
||||||
|
3.Adjustable damping seat with safety belt , and a yellow caution light |
||||||
|
4.The off-road mobility is enhanced through by drive wheels with the MPT multi-function tire, wide base and cross-country tread pattern. |
||||||
|
5.The greatest travel speed of the cross country forklifts is designed at 23km, quicker than a normal industry forklift truck. |
||||||
|
6.The cross country forklifts has an effective and fast transportation stability on a smooth road surface. |
||||||
All technical parameters are subject to change without prior notice because of technical improvements.
