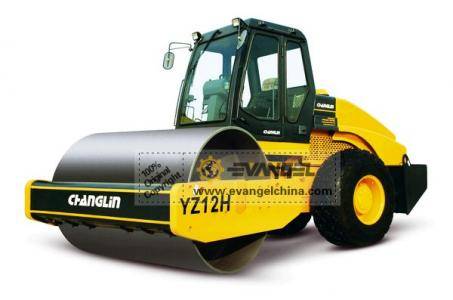

·          Equipped with DongFeng Cummins engine

·          Single frequency & Double amplitude, and super centrifugal force, creates strong compacting effect

·          Reasonable configuration, reliable performance, and high working efficiency hydraulic components

·          Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.

·          Rear-wheel hydraulic drive, and stepless T/M.


·          Overall Dimension



1

Length

6000mm



2

Width(to outside of wheels)

2300mm



3

Height(To the top of the cab)

3055mm



4

Wheel base

2945mm



5

Tread

1560mm



6

Min. ground clearance

395mm



Main Technical Specification



1

Static lineforce

300N/cm



2

Dynamic lineforce

1174 N/cm



3

Operating weight

12000kg



4

Nominal Amplitude –high

–low

             1.75mm

0.85mm



5

Centrifugal-Force –high

                        –low

             250kN

125kN



7

Static Weight at Drum

6500kg



8

Static Weight at Tires

5500kg



9

Frequency

32Hz



10

Min. turning radius(Outside of rear wheel)

5880mm



11

Drum diameter

1530mm



12

Drum width

2130mm



13

Drum thickness

25mm



14

Traveling speed(Km/h),




Stepless transmission

0~12.1



15

Gradient capacity

20%



Diesel engine



1

Model

Dongfeng Cummins engine 6BT5.9-C150 东风康明斯

2

Type

Direct injection. Turbocharged. Water cooling直喷式、涡轮增压、水冷

3

Rated output

110 kW

4

Bore and stroke

102X120mm

5

Total exhaust of cylinder

5.9 (L)

6

Rated speed

2200(r/min)

7

Max. Torque

590(N.M)/1500RPM

8

Starting type

Electric

9

Min. specific fuel consumption

217(g/Kw.h)//1600RPM

10

Net weight

410±20(kg)

Driving System



1

Model

Static Hydraulic stepless driving



2

Type

Drive pump +drive motor + reducer



3

Model of drive pump

90R100



4

Model of drive motor

90M075



5

System pressure

42MPa



6

Type of reducer

YZ14H.2A(Spur gear parallel shaft constant-mesh)



7

Gear ratio of reducer

3.6



Axle and Tire



1

Type of main reducer

spiral bevel gear, single stage



2

Gear ratio of main reducer

3.889



3

Type of final reducer

Single stage planetary



4

Gear of ratio of final reducer

4.941



5

Gear ratios

19.2155



6

Size of tire

23.1-26-12PR



Working Device Hydraulic System



1

Model of tandem pump(vibratory+steering)

HP051B498BIJM20-7BRAB06-1



2

Vibrating hydraulic system pressure

160(kgf/cm2)



3

Model of oil motor

HM051A878BEP020-7



4

Solenoid vibratory valve

ZF250B



Steering System



1

Type

Middle articulated frame. Full-hydraulic Steering



3

Model of redirector

BZZ1-E500C



4

System pressure

12MPa



5

Dimension of steering cylinder

Ф90*45*280(mm)



Brake System



1

Type of traveling brake

Single chamber brake valve

Caplier disc brake

Air over oil activate rear axle



2

Air pressure

6-8(kgf/cm2)



3

Type of parking brake

Hand brake

Flexible shaft control clamp brake



Oil Capacity



1

Fuel(diesel)

250 (L)



2

Engine lubricating oil

15 (L)



3

Oil for gear box

2.2(L)



4

Oil for hydraulic system

200 (L)



5

driving axles (R)

Oil for main reducer主传动

18(L)



Oil for final reducer轮边

2X3(L)



6

Oil for brake system

1.5( L)



7

Oil for vibrating drum

2X56(L)
