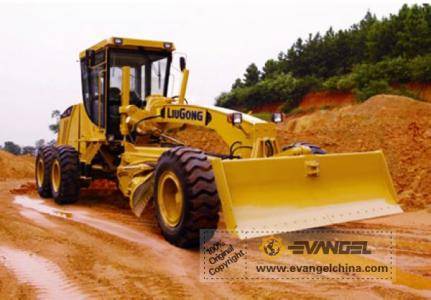

                                                                                CLG418II Motor Grader



Features & Benefits

Operator Comfort and Safety

Dustproof, sound reducing, shock absorbing and anti-UV cabin.

Comfortable adjustable suspension seating.

Air Conditioning optional.

Full range of visibility.

Reliability

Power cuts off if hand brake not removed, this prevents accidental damage.

Parts, service and attachments you can count on.

World-class suppliers of key components.

Easy to Maintain

Hydraulic pipes on both sides of frame for easy maintenance.

Easy engine access and access to main maintenance points

Built for Efficiency

World-class Dongfeng Cummins engine with high power and low fuel consumption.

Scraping knife has 360 degree rotation, 90 degree right/left lateral adjustment, and 40-70 degree penetration for leveling, trenching, ditching, wall scraping and more.

LiuGong designed suction cooling system has better cooling, lower wind sensitivity and is less impacted by dirt than normal systems.

Meeting EU stage II/EPA tier 2 emission standards.



Specifications



Engine

DCEC

Net Power

144 KW (193 hp) @ 2200 rpm

Blade Width

3,960 mm

Maximum Speed

40.3 km/h

Draw Bar Pull

86 kN

Operating Weight

15,500 kg
