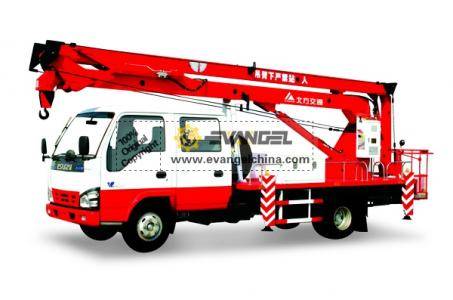

KaiFan Brand 18M Articulated Boom (ISUZU) Aerial Working Platform Technical Parameters

KFM5072JGK –GKZ—18Q



Working Condition

1Altitude: 0-1000m

2Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree (wind speed ≤12.5m/s)



Working Range

KFM5072JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.



 Main Parameters

Bulletin No.

KFM5072JGK

Type

GKZ-18Q

External dimensionsmm

8110×2000×2980

Structure type

Three-section articulated boom

Working Cage

Internal Sizemm

1100×600×1100

Rated loadingkg)

200or 2 persons

Max. Working heightmm

18000

Max. Height from groundmm

16300

Max. Working radiusmm

8670

Working radius when doing the highest heightmm

2270

Working Boom

Max. Raising angle of lower boomº

70

Max. Raising angle of upper boomº

70

小臂最大升角(º

Max. Raising angle of jibº

90

Boom rack ration angleº

360

Outrigger

Vertical spanmm

3550

Horizontal spanmm

3600

Traveling of vertical outriggermm

500

Adjustment

Single adjustable

Lifting

Rated lifting weightkg

995

Rated lifting heightmm

9060



Chassis Introduction

Traveling

Performance

Parameters

Chassis model

ISUZU NKR77LLWCJAY

Persons

2+3

Axle base (mm)

3815

Wheel base (front/rear)mm

1504/1425

Driving mode

4×2

Front suspensionmm

1015

Rear suspensionmm

2030

Approaching angleº

24

Departure angleº

10

Max. Grade ability%

30

Min. Turning diametermm

18000

Min. Ground clearancemm

190

Engine

Engine model

4KH1-TC

Rated powerkw/r/min

96/3400

TorqueNm/r/min

280/1700

Max. Speedkm/h

90

Gas consumption per one hundred miles(diesel oil) L

10.8

Specification of the tire

7.00-16

The whole weightkg

6260

Max. Weight with whole loadingkg

6585





Equipments Introduction

1.    ISUZU NKR77LLWCJAY

2.        Working boom assembly

3.       Rotation structure assembly

4.        Body transformation assembly

5.        Extending outrigger

6.       Spare type & tool box

7.       Hydraulic system assembly

8.       Electric system assembly

9.       Safety control system

10.    Working cage assembly

11.   Safety belt

12.   Safety lift & Moving guard bar

13.   Balance slid rod device

14.   Maintenance bag & tools

15.  Safety warning & Light

16.   Air- conditioning

17.   Lifting device



Vehicle Information

1.         Manual Instruction

2.         Operation manual of chassis

3.         Guarantee of chassis

4.          Certification of quality of the vehicle

5.          Maintenance Manual (Operation instruction)

6.         Operating safety certification
