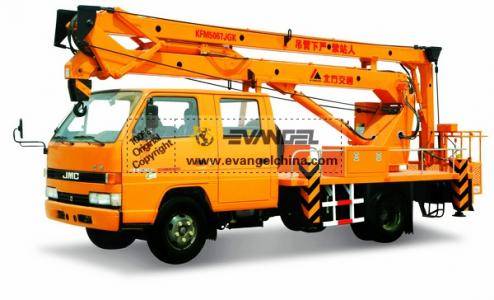

KaiFan Brand 16M Articulated Boom (JMC) Aerial Working Platform Technical Parameters

KFM5067JGK –GKZ-16J



Working Condition

1   Altitude: 0-1000m

2Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree (wind speed ≤12.5m/s)



Working Range

KFM5067JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.



 Main Parameters

Bulletin No.

KFM5067JGK

Type

GKZ-16J

External dimensionsmm

7200×1965×2955

Structure type

Three-section articulated boom

Working Cage

Internal Sizemm

1100×600×1100

Rated loadingkg

200 (or 2 persons )

Max. Working heightmm

16000

Max. Height from groundmm

14300

Max. Working radiusmm

8000

Working radius when doing the highest heightmm

2700

Working Boom

Max. Raising angle of lower boomº

70

Max. Raising angle of upper boomº

70

Max. Raising angle of jibº

90

Boom rack rotation angleº

360

Outrigger

Vertical spanmm

3050

Horizontal spanmm

3600

Traveling of vertical outriggermm

450

Adjustment

Single adjustable

Lifting

Rated lifting weightkg

995

Rated lifting heightmm

8200



Chassis Introduction

Traveling

Performance

Parameters

Chassis model

JMC JX1060TSG23

Persons

2+3

Axle base (mm)

3360

Wheel base (front/rear)mm

1385/1425

Driving mode

4×2

Front suspensionmm

1015

Rear suspensionmm

1815

Approaching angleº

27

Departure angleº

18.5

Max. Grade ability%

28

Min. Turning diametermm

13600

Min. Ground clearancemm

190

Engine

Engine model

JX493ZLQ3

Rated powerkw/r/min

85/3600

TorqueNm/r/min

285/2000

Max. Speedkm/h

70

Gas consumption per one hundred miles(diesel oil) L

10

Specification of the tire

7.00R16LT

The whole weightkg

5495

Max. Weight with whole loadingkg

5820



Equipments Introduction

1.    JMC JX1060TSG23

2.     Working boom assembly

3.     Rotation structure assembly

4.      Body transformation assembly

5.      Extending outrigger

6.     Spare type & tool box

7.      Hydraulic system assembly

8.       Electric system assembly

9.      Safety control system

10.    Working cage assembly

11.   Safety belt

12.    Safety lift & Moving guard bar

13.     Balance slid rod device

14.    Maintenance bag & tools

15.    Safety warning & Light

16.    Air- conditioning

17.     Lifting device



Vehicle Information

1.       Manual Instruction

2.        Operation manual of chassis

3.        Guarantee of chassis

4.       Certification of quality of the vehicle

5.       Maintenance Manual (Operation instruction)

6.       Operating safety certification
