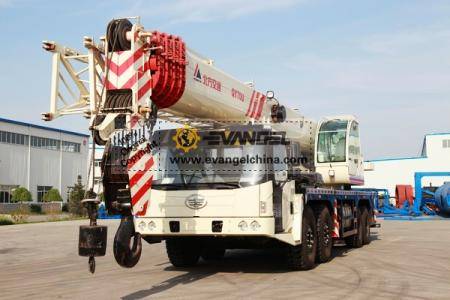

KaiFan Brand 70T (FAW) Crane Technical Parameters
（KFM5485JQZ70U – QY70U）
Working Condition
1、Altitude: 0-4500m
2、Temperature:-25℃--+45℃
3、Allowed working condition: solid, stable land, the vehicle should be horizontal
4、Wind force: ≤6 degree
Working Range
“KAI FAN” Brand KFM5485JQZ70U（QY70U）Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 70t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Main Parameters
|
Items |
Unit |
Value |
|
|
Working Performance Parameters |
Max. Rated lifting weight |
kg |
70000 |
|
Max. Lifting force of the basic boom |
kN.m |
2400 |
|
|
Max. Lifting force of the longest main boom |
kN.m |
1120 |
|
|
Max. Lifting height of the basic boom |
m |
12.49 |
|
|
Max. Lifting height of the main boom |
m |
44.60 |
|
|
Max. Lifting height of the vice boom |
m |
61.2 |
|
|
Working Speed |
Max. Speed of the single rope |
m/min |
120 |
|
Extending time of the lifting boom |
s |
150 |
|
|
Lifting time of the lifting boom |
s |
75 |
|
|
Turning speed |
r/min |
0-2 |
|
|
行驶参数 Traveling Parameters |
Max. Travelling speed |
km/h |
72 |
|
Max. Grade ability |
% |
30 |
|
|
Min. Turning radius |
m |
12 |
|
|
Min. Ground clearance |
m |
0.230 |
|
|
Approaching angle |
° |
18 |
|
|
Departure angle |
° |
11 |
|
|
Weight Parameters |
The whole weight |
kg |
47870 |
|
Load of the front axle |
kg |
9935/9935 |
|
|
Load of the rear axle (double axles) |
kg |
28000 |
|
|
Dimension Parameters |
External dimension（length*width*height） |
mm |
14350×2800×3750 |
|
Vertical span of outrigger |
m |
5.95 |
|
|
Horizontal span of outrigger |
m |
7.7 |
|
|
Length of main boom |
m |
11.6～44 |
|
|
Length of vice boom |
m |
9.6-16.1 |
|
|
Elevation of main boom |
° |
-2～80 |
|
|
Chassis |
Model |
— |
CA5480JQZ |
|
Engine model |
— |
WP12.375 |
|
|
Rated power/speed |
kw/（r/min） |
276/2100 |
|
|
Max. Torque/rotate speed |
n.m/（r/min） |
1500/1350 |
|
Standard Equipments
1. FAW CA5480JQZ
2. Main boom assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Windlass assembly
6. Slewing system
7. Electric system
8. Hydraulic system
9. Outrigger
10. Superstructure control system
11. Chassis control system
12. Tool box
