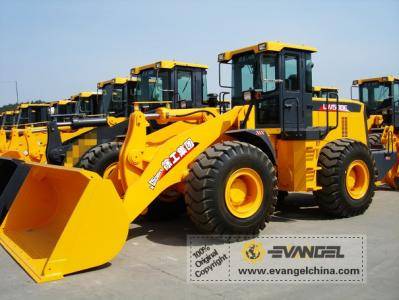

LW500F Wheel Loader



Features:



LW500F is XCMG popular wheel loader of high efficiency with more than 10 years’ experience. The performance, efficiency, structural strength, service life, daily maintenance and operation condition are upgraded all round. With the two breakthroughs of driving medium and covering part, the machine is ahead of other product of the same kind essentially. The machine is especially adapted to the working conditions of aggregate, earthmoving, coal. The shoveling work efficiency ranks top in the industy.
(1) Excellent performance
Large strength: the strong digging force of 15.8 ton and strong traction of 15.6 ton ensure that the machine adapts to the various tough condition.
Long dumping distance: super long dumping distance of 1274mm guarantees enough operation space.
Excellent wheelbase: proper wheelbase of 2900mm, outstanding site adaption and operation reliability.
Good ventilation: optimize the ventilation order of hydraulic oil and cooling water. The water cooling of the transmission oil settles issue of the high temperature which is common problem in the industry.
(2) High efficiency
Quick action: the total time of three devices is only 9.9s, leading in the industry.
Fast speed: the machine speed is 11.5 km/hour during the operation, featuring rapid shoveling.
Flexible steering: small turning radius; load sensing steering, flexible and efficient.
Sufficient power: dual-pump combination; the machine utilizes the power sufficiently, saves the energy, and features high efficiency.
(3) High strength
Superstrong heavy load design; the front and rear frames adopt the box type structure, featuring thick board and high strength.
The key structural parts adopt the finite-element analysis to ensure that the machine could adapt to various kinds of dangerous working condition.
Integrated casting support lug features strong carrying capacity.
(4) Long service life
Key articulated positions are of two-stage dustproof, featuring small abrasion and long service life.
Durable blade and bucket teeth feature longer service life.
The dismountable durable plate on the bottom of the bucket could prolong the service life of the bucket.
The hydraulic pipeline adopts two-level sealing of 24° cone and O ring, settling the common issue of leakage.
(5) Comfortable operation
Equal to the luxury cab of the car, featuring large space and wide visibility.
Adjustable luxury seat, elegant and comfortable.
Optional electric cabinet, guide control and air conditioner, MP3 and acoustics, more convenient operation, and more comfortable driving.
(6) Convenient maintenance
•Optimized structure of the brake caliper, and the position moves inside, more convenient for the maintenance.
•Openable rotary oil tank features easy maintenance.
•The hood adopts upturning side door, featuring large opening angle and easy access.
•The oil return of the hydraulic oil tank features the independent chamber, ensuring convenience of the maintenance.
(7) Strong adaptability
· LW500F could operate with full load in mountainous region, muddy or narrow area.
(8) Outstanding shovelling capacity
· LW500F features strong digging force and traction, and great shovelling capacity. It can deal with stong, wet sand and mineral powder freely.
(9) Excellent full bucket coefficient
· Long bucket bottom, sharp bucket type, strong cut-in force, much material, power saving and high efficiency.
(10) Excellent stacking capacity
· Large digging force, strong gradeability, and meet the requirement of each condition.



Parameter:



Item

Parameter

Unit

Rated load

5.0

t

Bucket capacity

3.0

Dumping height

3100

mm

Dumping distance

1274

mm

Max.drawing force


158

kN

Max. traction

156

kN

Dimension

8010×3016×3350



Operating weight

16.5

t

Boom lifting time

≤5.6

s

Total time of three devices

≤9.9

s

Wheelbase

2900

mm

Min. turning radius (bucket outer)

6920

mm

Rated power

±35°



Travel speed

I Gear (Forward/Backward)

0~11.5/16.5

 km/h

II Gear (Forward)

0~38

 km/h

Long boom parameter



Standard bucket

Coal bucket

Bucket capacity

2.7m³

3.5m³

Rated load

4.5t

4.0t

Dumping height

3520mm

3340mm

Dumping distance

1230mm

1380mm

Dimension

8300×3016×3350

8530×3016×3350

Min. turning radius (bucket outer)

7060mm

7080mm

Operating weight

16.6t

16.7
