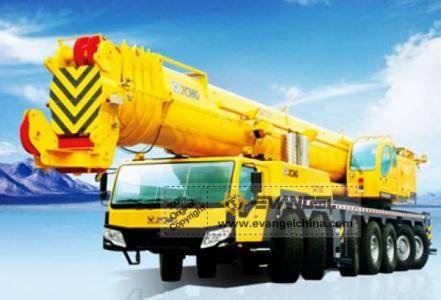

QAY300 All Terrian Crane
QAY300 adopts 7-axle chassis, 5-axle steering, 4-axle drive, elliptic section jib, and single-cylinder no-rope automatic stretch and retract, having strong lifting performance. Through the application of the fieldbus technique, the computer integration control technique makes the product failure diagnosis highly intelligent, and makes the control highly automatic. The mature application of limit load in accordance with the power makes the machine energy efficient, low noisy, environmental friendly, and safe. The variable-rigidity air and hydraulic suspension technique makes the machine comfortable to drive and have good stability and longitudinal trafficability.
The additional equipment of the machine includes super-lift device, luffing jib, and fixed lengthening jib, which increase the lifting performance and working scope in an unimaginable proportion. The working radius and lifting height are respectively up to 86m and 116m.
Parameter
|
Dimension |
Unit |
QAY300 |
|
Overall length |
mm |
18210 |
|
Overall width |
mm |
|
|
Overall height |
mm |
4000 |
|
Weight |
||
|
Total weight in travel |
kg |
79680 |
|
Front axle load (axle 1, 2, 3) |
kg |
11625 |
|
Rear axle load (axle 4, 5, 6, 7) |
kg |
11201 |
|
Power |
||
|
Engine model |
TAD722VE |
|
|
Engine rated power |
kW/(r/min) |
194/2100 |
|
Engine rated torque |
N.m/(r/min) |
2700/1080 |
|
Travel |
||
|
Max. travel speed |
km/h |
75 |
|
Min. turning diameter |
m |
24 |
|
Min. ground clearance |
mm |
|
|
Approach angle |
° |
19 |
|
Departure angle |
° |
19 |
|
Max. gradeability |
% |
40 |
|
Oil consumption per 100km |
L |
|
|
Main performance |
||
|
Max. rated total lifting capacity |
t |
300 |
|
Min. rated radius |
mm |
|
|
Turning radius at turntable tail |
m |
|
|
Max. lifting torque |
kN.m |
9526 |
|
Base boom |
m |
|
|
Fully extended boom |
m |
|
|
Fully extended boom + jib |
m |
|
|
Outrigger longitudinal distance |
m |
8.7 |
|
Outrigger transverse distance |
m |
9.2 |
The specification is subject to change without notice.
