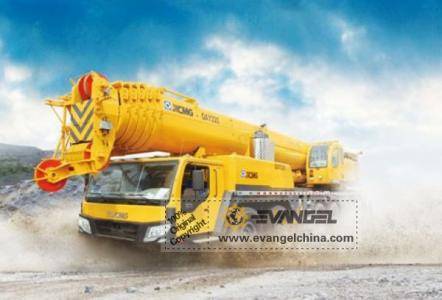

QAY220 All Terrian Crane
Feature
•QAY220 all terrain crane inherits the 222 patent techniques and 38 new patents techniques.
•The product adopts 6-axle chassis, 12x12 full-axle steering, 6-segment retractable boom, and oval section. The variable section technique make the machine has big antitorque and high stability. The optimized various retractable boom combination play the performance to the most.
•The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%. The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes. The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety. The comfortable cabs and outrigger operation completely show the humanity design concept. Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.
Parameter
|
Dimension |
Unit |
QAY220 |
|
Overall length |
mm |
15850 |
|
Overall width |
mm |
|
|
Overall height |
mm |
4000 |
|
Weight |
|
|
|
Overall weight in transport |
kg |
72000 |
|
Front axle load |
kg |
|
|
Rear axle load |
kg |
|
|
Power |
|
|
|
Engine model |
|
Imported Benz EFI engine |
|
Engine rated power |
kW/(r/min) |
420/1800 |
|
Engine rated torque |
N.m/(r/min) |
2700/1300 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
72 |
|
Min. turning diameter |
m |
23 |
|
Min. ground clearance |
mm |
|
|
Approach angle |
° |
16 |
|
Departure angle |
° |
18 |
|
Max. grade ability |
% |
50 |
|
Fuel consumption for 100km |
L |
|
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
220 |
|
Min. rated working radius |
mm |
|
|
Turning radius at turntable tail |
m |
|
|
Max. lifting torque |
kN.m |
6774 |
|
Base boom |
m |
|
|
Fully extended boom |
m |
64 |
|
Fully extended boom+ jib |
m |
96 |
|
Longitudinal outrigger span |
m |
8.7 |
|
Lateral outrigger span |
m |
8.8 |
|
Working speed |
|
|
|
Boom luffing time |
s |
|
|
Boom full extension time |
s |
|
|
Max. swing speed |
r/min |
|
|
Max. speed of main winch (single rope) (no load) |
m/min |
|
|
Max. speed of aux. winch (single rope) (no load) |
m/min |
|
The specification is subject to change without notice.
