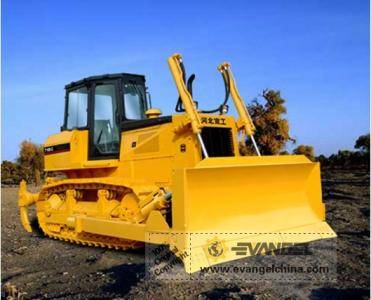

T165-2 Bulldozer
Features:
Semi-rigid suspended, mechanical transfer, hydraulic controlled track-type bulldozer. Oil booster control clutch, normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Single lever pilot hydraulic controls implement. Superior cabin is designed with streamline outlook and electric monitor. Been Popular among customers by its many merits such as productive efficiency, easy operated, low maintenance cost. T165-2 will be the ideal choice for transportation, desert working, oil field, electric power, mine project, etc. It is the updated product based on T165-1.
Specifications:
|
Type of blade |
Angle |
Tilt |
|
Operation weight kg |
17900 |
17800 |
|
Ground pressure kpa |
69.3 |
69 |
|
Track gauge mm |
1880 |
1880 |
|
Min.ground clearance mm |
352.5 |
352.5 |
|
Gradient |
30/25 |
30/25 |
|
Blade width mm |
4.9 |
5 |
|
Blade width mm |
3762 |
3297 |
|
Max.digging depth mm |
377 |
420 |
|
Overall dimensions mm |
5716x3762x3160 |
5416x3297x3160 |
|
Engine |
|
|
|
Type |
WD10G175E15 |
WD10G175E15 |
|
Rated revolution rpm |
1850 |
1850 |
|
Flywheel power KW |
120 |
120 |
|
Max.torque N.m/rpm |
810 / 1000-1200 |
810 / 1000-1200 |
|
Rated fuel consumption g/KW.h |
215 |
215 |
