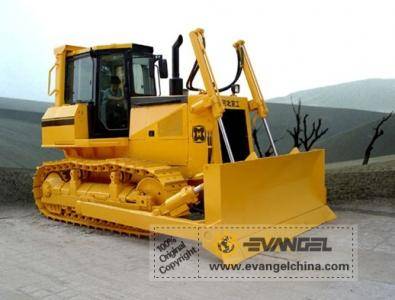

TY165-2 Bulldozer
Features:
TY165-2 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control and single level steering and braking control.
TY165-2 bulldozer is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.
TY165-2 bulldozer is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.
It is the upgrade product of TY165-1 bulldozer.
Specifications:
|
Overall dimensions (L×W×H) : |
5416×3297×3160 mm |
|
Operation weight: |
17.8 t |
|
Flywheel power: |
121 kW |
|
Max. drawbar pull: |
139.6 kN |
|
Ground pressure (at operating weight): |
69.2 KPa |
|
Min. ground radium: |
4.0 m |
|
Min. ground clearance: |
352.5 mm |
Diesel engine
|
Manufactured factory: |
WEIFANG DIESEL ENGINE CO.,LTD |
|||
|
Model: |
WD10G178E15 |
|||
|
Type: |
straight line, water-cooled, with four stroke, pressure boost and direct injection |
|||
|
Cylinders Number-bore diameter×travel distance: |
6-126x130mm |
|||
|
Displacement: |
9.726 L |
|||
|
Rated RPM: |
1850 r/min |
|||
|
Rated power: |
121 kW |
|||
|
Max. torque |
830 N·m/1000-1200 rpm |
|||
|
Fuel consumption (at rated working condition |
≤218 g/kW·h |
|||
|
oil consumption: |
1.8 g/kW·h |
|||
|
Admissible altitude |
≤4000m |
|||
|
Cooling method: |
closed circulation water cooled |
|||
|
Starting method: |
electrically starting at 24V pressure |
|||
|
|
|
|
|
|
Torque converter and transmission
Single-stage, three unites structure torque converter.
output power is stable with high performance.
Planetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted.
Travel speed (in theory 1900/min engine speed ):
|
Forward |
Reverse |
||
|
First speed |
0—3.32 km/h |
First speed |
0—4.00 km/h |
|
Second speed |
0—6.26 km/h |
Second speed |
0—7.57 km/h |
|
Third speed |
0—11.40km/h |
Third speed |
0—13.87km/h |
