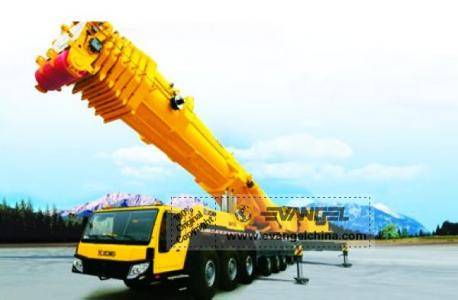

QAY200 All Terrian Crane
Parameter
|
|
|
||
|---|---|---|---|
|
1 |
Total mass in travel state |
kg |
72000 |
|
2 |
Overall length for travel |
mm |
16200 |
|
3 |
Overall width for travel |
mm |
≤3000 |
|
4 |
Overall height for travel |
mm |
≤4000 |
|
5 |
Chassis length |
mm |
14240 |
|
6 |
Max. travel speed |
km/h |
71 |
|
7 |
Min. stable travel speed |
km/h |
2 |
|
8 |
Drive type |
|
12×6 |
|
9 |
Steering type |
|
12×10 |
|
10 |
Approach angle |
° |
≥25 |
|
11 |
Departure angle |
° |
≥17.8 (24) |
|
12 |
Max. grade-ability |
% |
≥55 |
|
13 |
Carrier engine rated output |
kw/rpm |
380/1800 |
|
14 |
Superstructure engine rated output |
kw/rpm |
162/2100 |
|
15 |
Outrigger type |
|
双H支腿Double H |
|
16 |
Outrigger span(longitudinal×lateral ) |
mm |
9625×8700 |
|
17 |
Min. turning diameter |
mm |
≤23000 |
|
18 |
Max. rated lifting capacity |
kg |
200000 |
|
19 |
Jib max. lifting capacity |
kg |
12000 |
|
20 |
Min. rated working radius |
m |
3 |
|
21 |
Max. load moment |
kN .m |
6350(9m×72t) |
|
22 |
Boom elevation |
° |
0～82 |
|
23 |
Boom length |
m |
13.8 |
|
24 |
Fully extended boom length |
m |
61 |
|
25 |
Base boom lifting height |
m |
14.5 |
|
26 |
Fully extended boom lifting height |
m |
59.5 |
|
27 |
Jib length |
m |
11.55、 20 |
|
28 |
Swing speed |
r/min |
0～2 |
|
29 |
Single rope hoist speed |
m/min |
0～120 |
The specification is subject to change without notice.
