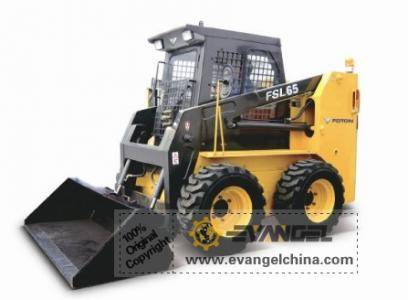

FSL65 Skid Steer Loader

Product Features of FSL65:

1. Compact structure, maneuverable movement sensitive movement suitable for narrow space operations

2. Full-wheeled driving is fit for hilly site work;

3. Working devices diversity can realize instant replacement for different operation;

Parameter Items

Parameter Value

Main technical parameters



Rated load (kg)

900

Tipping load (kg)

1800

Bucket Capacity (m3)

0.4-0.5

Work Flow( L / min)

75

Power (Hp)

65

Machine weight (kg)

3150

Speed (km / h)

12/18

Power (Hp)

65

Machine weight (kg)

3150

Speed (km / h)

12/18

Tire Size

12-16.5NHS

Fuel oil, hydraulic oil capacity (L)

80/80

Main dimensions



Maximum operating height (mm)

3690

Hinge pin height (mm)

2920

Width including bucket (mm)

1900

Track distance (mm)

1500

Wheelbase (mm)

1085

Ground Clearance (mm)

200

Flip angle (°)

40

Flip height (mm)

2330
