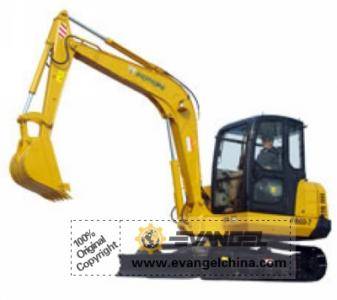

FR60 Excavator
Product Features of FR60：
1. Japan Yanmar engine
2. Hydraulic control valves from KYB/REXROTH system, main pump from KYB/REXROTH/CASAPPA, high efficient and reliable;
3. Design and manufacture of structural components reach to world-class level;
4. Fashionable and safe driving cab.
|
Parameter Items |
Parameter Value |
|
1.The main parameters |
|
|
Operating weight (kg) |
5730 |
|
Standard bucket capacity (m3) |
0.18 |
|
Transport dimensions (L × W × H) mm |
6010*1880*2650 |
|
Bucket digging force (kN) |
42 |
|
Stick digging force (kN) |
31 |
|
Maximum Traction force (kN) |
52.8 |
|
2. Walking device |
|
|
High and low speed （km / h） |
4.5/3.0 |
|
Grade ability (°) |
30 |
|
Ground pressure(kpa) |
32 |
|
Rotating device |
|
|
Rotating Speed (rpm) |
10.2 |
|
4.Engine |
|
|
Model |
YANMAR 4TNV94L-SFN |
|
Type |
Four-cylinder, direct injection, naturally aspirated, water-cooled |
|
Rated power / speed (kW / rpm) |
39/2200 |
|
Bore × stroke（mm） |
94×110 |
|
Displacement （L） |
3.054 |
|
Fuel consumption（g / kW • h） |
235 |
|
Fuel tank capacity |
120 |
|
5.Hydraulic system |
|
|
Main pump pressure （Mpa） |
24.5 |
|
Main pump flow （L / min） |
135 |
|
6.Operation range |
|
|
Maximum digging height（mm） |
5330 |
|
Maximum unloading height（mm） |
3640 |
|
Maximum digging depth（mm） |
3935 |
|
Maximum digging radius（mm） |
5330 |
|
Bulldozing Blade size （L x W ）mm |
1880x 360 |
