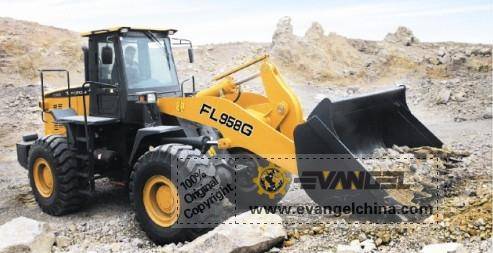

FL958G Wheel Loader

Technical features of FL958G

1.Equipped with Weichai WD10G220E23 engine as standard configuration and with Shangchai-SC11CB220G2B1engine as optional;

2. Central articulated, the whole machine is of good stability;

3. Adopted all-hydraulic flow priority to enlarge steering systems, light and flexible steering;

4. Adopted large vision field, all closed damping luxurious cab with A/C and audio device, advanced damping seat, comfortable and safe operating environment;

5. Equipped with cold start, central greasing , electronic weighing .

Parameter Items

Parameter Value

1.Main parameter



Rated load (kg)

5000

Operating Weight (standard) (kg)

17100

Rated Bucket Capacity (m3)

3

Maximum breakout force (KN)

185

Maximum traction force (KN)

160

Total hydraulic cycle time (s)

10.6

Maximum dump height (mm)

3180

Maximum dump distance (mm)

1160

Forward speed range (km / h)

038.4

Reverse speed range (km / h)

024.2

Transport dimensions (L × W × H) (mm)

7960×2970×3450

Maximum steering angle (°)

37

Max grade ability(°)

30

Minimum turning radius (mm)

6770

Tire Size

23.5-25-16PR

2.Engine parameter



Model

Weichai WD10G220E23

Type

6-cylinder, in-line, direct injection and turbocharged

Power (kw)

162

Maximum torque (N.m)

930

Cylinder diameter (mm)

126

Stroke (mm)

130

Displacement(L)

9.756

Fuel consumption ( kw.h)

220

3.Hydraulic system



Work system pressure (Mpa)

20

4.Braking System



Running braking system type

Single pipe air-oil 4-wheel clipper disc braking

Parking / emergency brake system type

Drum braking

5.Fuel Tank Capacity



Fuel tank (L)

280

Hydraulic Tank capacity (L)

210
