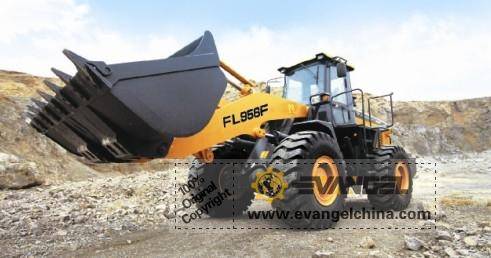

FL956F Wheel Loader

Technical features of FL956F

1.Equipped with Weichai WD10G220E23 engine as standard configuration and with Shangchai-SC11CB220G2B1engine as optional;

2. Adopted all-hydraulic flow priority to enlarge steering systems, light and flexible steering;

3. Adopted large vision field, all closed damping cab, comfortable operation environment;

4. Optional pilot control, easy operation and labor free;

Parameter Items

Parameter Value

1.Main parameter



Rated load(kg)

5000

Operating Weight (standard) (kg)

16500

Rated Bucket Capacity (m3)

3

Maximum breakout force (KN)

165

Maximum traction force (KN)

155

Total hydraulic cycle time (s)

10.6

Maximum dump height (mm)

3180

Maximum dump distance (mm)

1100

Forward speed range (km / h)

038.4

Reverse speed range ((km / h)

024.2

Transport dimensions (L × W × H) (mm)

7880X2970X3450

Maximum steering angle (°)

37

Max grade ability(°)

30

Minimum turning radius (mm)

6770

Tire Size

23.5-25-16PR

2.Engine parameter



Model

Weichai WD10G220E23

Type

6-cylinder, in-line, direct injection and turbocharged

Power (kw)

162

Maximum torque (N.m)

930

Cylinder diameter (mm)

126

Stroke (mm)

130

Displacement (L)

9.756

Fuel consumption ( kw.h)

220

3.Hydraulic system



Work system pressure (Mpa)

18

4.Braking System



Running braking system type

Single pipe air pushing oil 4-wheel clipper disc braking

Parking / emergency brake system type

Clipper disc braking

5.Fuel Tank Capacity



Fuel tank (L)

280

Hydraulic Tank capacity (L)

210
