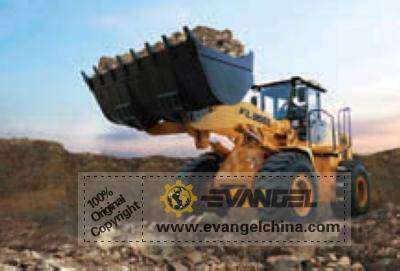

FL955F Wheel Loader
Technical features of FL955F
1.Complete vehicle with Improved radiation performance, with vent holes for radiator both in top and side of hood, capable of functioning normally below 50℃;
2.Enlarge drive space, improve operation ease, boost seal performance and reduce cabin’s noise;
3.Brake bend seal uses thread seal glue+ O ring seal to increase seal performance.
4.Short wheelbase, small turn radius and increased flexibility make it convenient to work in narrow site;
|
Parameter Items |
Parameter Value |
|
1.Main parameter |
|
|
Rated load (KG) |
5000 |
|
Operating Weight (standard) (KG) |
16650 |
|
Rated Bucket Capacity (m3) |
3.0 |
|
Maximum breakout force (KN) |
≥175 |
|
Maximum traction force (KN) |
≥160 |
|
Total hydraulic cycle time (S) |
≤10.2 |
|
Maximum dump height (mm) |
3135 |
|
Maximum dump distance (mm) |
1195 |
|
Forward speed range (KM / H) |
0～42 |
|
Back speed range (KM / H) |
0～17.5 |
|
Transport dimensions (L × W × H) (mm) |
（7700±50）×2980×(3420±50) |
|
Maximum steering angle (°) |
35 |
|
Max grade ability(°) |
29 |
|
Minimum turning radius (mm) |
6850 |
|
Tire Size |
23.5-25 |
|
2.Engine parameter |
|
|
Model |
Weichai WD10G220E23 |
|
Type |
6-cylinder, in-line, direct injection and turbocharged |
|
Power (KW) |
162 |
|
Maximum torque (N.M) |
900 |
|
Cylinder diameter (mm) |
126 |
|
Stroke (mm) |
130 |
|
Displacement (L) |
9.756 |
|
Fuel consumption (G / Kw.h) |
220 |
|
3.Hydraulic system |
|
|
Work system pressure (Mpa) |
18 |
|
4.Braking System |
|
|
Running braking system type |
Single pipe air pushing oil 4-wheel clipper disc braking |
|
Parking / emergency brake system type |
Clipper disc braking |
|
5.Fuel Tank Capacity |
|
|
Fuel tank (L) |
270 |
|
Hydraulic Tank capacity (L) |
270 |
