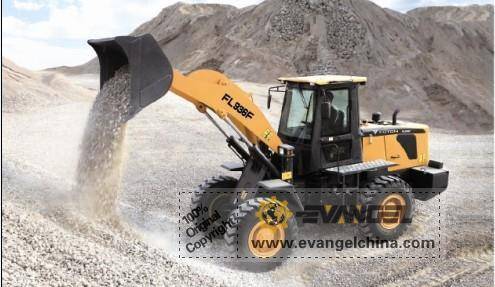

FL936F Wheel Loader
Technical features of FL936F
1.Equipped with Weichai WP6G 125E22 engine as standard configuration and YC6B125-T20 engine as optional;
2.Adopted a large vision, all closed damping cab, comfortable operation environment;
3.Optional pilot control, easy and light operation;
4.Hydro-mechanical transmission avoids the stop due to the sudden increased external load, absorbs and eliminates the vibration and shocks on the engine due to the external load, and increases machine life cycle;
5.Four-wheeled driving, low-pressure, wide-base, off-highway tires, with good performance of passing
|
Parameter Items |
Parameter Value |
|
1.Main parameter |
|
|
Rated load (kg) |
3000 |
|
Operating Weight (standard) (kg) |
10070 |
|
Rated Bucket Capacity (m3) |
1.8 |
|
Maximum breakout force (KN) |
120 |
|
Maximum traction force (KN) |
92 |
|
Total hydraulic cycle time (s) |
10.5 |
|
Maximum dump height (mm) |
2980 |
|
Maximum dump distance (mm) |
1100 |
|
Forward speed range (Km / h) |
0～37 |
|
Reverse speed range (Km / h) |
0～28.5 |
|
Transport dimensions (L × W × H) (mm) |
7150×2424×3230 |
|
Maximum steering angle (°) |
36 |
|
Max. Grade ability(°) |
30 |
|
Minimum turning radius (mm) |
6005 |
|
Tire Size |
17.5-25-12PR |
|
2.Engine parameter |
|
|
model |
Deutz WP6G125E22 |
|
Type |
6-cylinder, in-line, direct injection , turbocharge |
|
Power (kw) |
92 |
|
Maximum torque (N.m) |
460@1400-1600 |
|
Cylinder diameter (mm) |
105 |
|
Stroke (mm) |
120 |
|
Displacement (L) |
6.234 |
|
Fuel consumption ( kw.h) |
220 |
|
3.Hydraulic system |
|
|
Work system Pressure (Mpa) |
16 |
|
4.Braking System |
|
|
Running braking system type |
Single pipeline gas-oil 4-wheel clipper disc braking |
|
Parking / emergency brake system type |
Clipper disc braking |
|
5.Fuel Tank Capacity |
|
|
Fuel tank (L) |
155 |
|
Hydraulic Tank capacity (L) |
180 |
