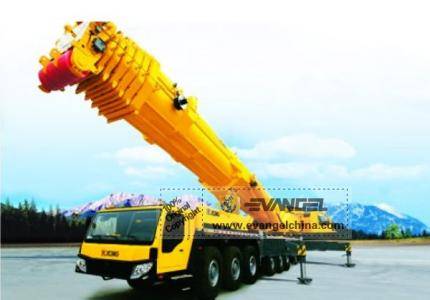

QAY160 All Terrian Crane
Parameter
|
|
|
|||
|---|---|---|---|---|
|
Dimension |
Overall length |
mm |
15900 |
|
|
Overall width |
mm |
3000 |
||
|
Overall height |
mm |
4000 |
||
|
Wheel base |
Axle 1, Axle 2 |
mm |
2750 |
|
|
Axle 2,Axle 3,Axle 4,Axle 5, Axle 6 |
mm |
1650 |
||
|
Axle 3, axle 4 |
mm |
2000 |
||
|
Track |
mm |
2590 |
||
|
Mass |
Total mass in travel state |
kg |
70900 |
|
|
Axle load |
Axle 1, Axle 2 |
kg |
11635 |
|
|
Axle 3, Axle 4 |
kg |
11815 |
||
|
Axle 5, Axle 6 |
kg |
12000 |
||
|
Power |
Crane superstructure engine |
Rated power |
kW/(r/min) |
162/2100 |
|
Rated torque |
N.m/(r/min) |
854/1400 |
||
|
Rated speed |
r/min |
2100 |
||
|
Crane carrier engine |
Rated power |
kW/(r/min) |
380/1800 |
|
|
Rated torque |
N.m/(r/min) |
2400/1200 |
||
|
Rated speed |
r/min |
2000 |
||
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
71 |
|
Min. stable travel speed |
km/h |
2.1 |
||
|
Min. turning diameter |
m |
24 |
||
|
Min. ground clearance |
mm |
278 |
||
|
Approach angle |
° |
25 |
||
|
Departure angle |
° |
20 |
||
|
Braking distance (at 30km/h with full load) |
m |
≤ 10 |
||
|
Max. grade-ability |
% |
48 |
||
|
Fuel consumption for 100km |
l |
80 |
||
Technical Data for Lifting Operation
|
|
||||||
|---|---|---|---|---|---|---|
|
Main performance |
Max. total rated lifting capacity |
t |
160 |
|||
|
Min. rated working radius |
m |
3 |
||||
|
Turning radius at turntable tail |
mm |
4850 |
||||
|
Max. load moment |
Base boom |
kN.m |
5282 |
|||
|
Fully extended boom |
kN.m |
2140 |
||||
|
Outrigger span |
Longitudinal |
m |
9.625 |
|||
|
Lateral |
m |
8.7（6.5） |
||||
|
Lifting height |
Base boom |
m |
14.3 |
|||
|
Fully extended boom |
m |
56.3 |
||||
|
Fully extended boom + Jib |
m |
79 |
||||
|
Boom length |
Base boom |
m |
13.6 |
|||
|
Fully extended boom |
m |
60 |
||||
|
Fully extended boom + Jib |
m |
80 |
||||
|
Jib offset |
° |
0、15、30 |
||||
|
Working speed |
Boom elevating time |
Boom raising |
s |
90 |
||
|
Boom telescoping time |
Boom full extension |
s |
600 |
|||
|
Boom full retraction |
s |
600 |
||||
|
Max. swing speed |
r/min |
2 |
||||
|
Hoist speed (single rope at 4th layer) |
Main winch |
No load |
m/min |
120 |
||
|
Aux. winch |
No load |
m/min |
110 |
|||
|
Crane exterior noise |
db（A） |
≤118 |
||||
|
At seated position |
db（A） |
≤90 |
||||
The specification is subject to change without notice.
