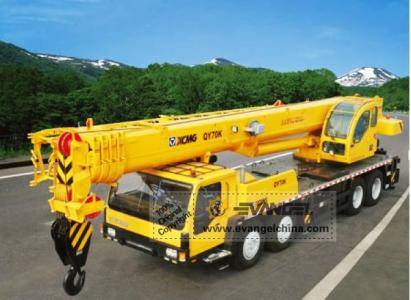

QY70K Truck Crane
Parameter
|
Classificatory |
Item |
Unit |
Parameter |
|
|
Outline dimension |
Overall length |
mm |
13500 |
|
|
Overall width |
mm |
2800 |
||
|
Overall height |
mm |
3510 |
||
|
Wheel base |
Axle 1, Axle 2 |
mm |
1520 |
|
|
Axle 2, Axle 3 |
mm |
3965 |
||
|
Axle 3, Axle 4 |
mm |
1350 |
||
|
Mass |
Total mass in travel state |
kg |
41000 |
|
|
Axle load |
Axle 1, Axle 2 |
kg |
15000 |
|
|
Axle 3, Axle 4 |
kg |
26000 |
||
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
75 |
|
Turning diameter |
Min. turning diameter |
m |
24 |
|
|
Min. turning diameter at boom tip |
m |
29.0 |
||
|
Min. ground clearance |
mm |
270 |
||
|
Approach angle |
(°) |
16.5 |
||
|
Departure angle |
(°) |
11.3 |
||
|
Braking distance (at speed of 30km/h) |
m |
≤10 |
||
|
Max. grade-ability |
％ |
40 |
||
|
Fuel consumption for 100km |
L |
42 |
||
|
Power |
Engine rated output |
kW/(r/min.) |
266/2208 |
|
|
EnEngine rated torque |
N.m/(r/min.) |
1460/1400 |
||
|
Engine rated speed |
rpm. |
2200 |
||
The specification is subject to change without notice.
