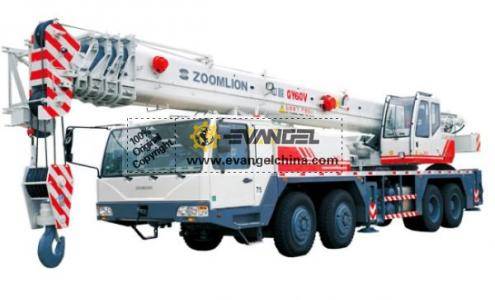

QY60V532 Truck Crane
Features
The QY60V532 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years' manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.
The truck crane, with spacious cab and luxurious equipments, adopts full slewing system, telescopic boom, electro-hydraulic proportional control system and self-made full-width special purpose chassis with four axles. 8×4 drive and hydraulic power steering mechanism provide the crane with good driving performance and flexible steering.
The system with latest load feedback electro-hydraulic operated proportional directional control valve and double pump is adopted to make full use of the working capacity of each actuating mechanism. The control type of 2 levers, which are flexible and stepless speed regulated, can carry out any of the 2 crane movements “Spool up main / auxiliary winch”, “Reel off main / auxiliary winch”, “Telescope boom in / out”, “Derrick”, and “Slew” simultaneously. All that not only provides the crane with stable and reliable simultaneous movements but also greatly improves crane's working efficiency. The safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage. The control system adopts modern data bus technology and has fault self-diagnosis function. LCD can display the pressure on fault point in real time and provide the troubleshooting methods.
The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.
This crane has a novel style which makes it beautiful in figure, in form and in color
Parameter
|
Item |
Value |
Remarks |
|
|
Working performance specifications |
Max. rated lifting capacitykg |
60000 |
|
|
Max. load moment of basic boom kN.m |
2132 |
||
|
Max. load moment of max. boom lengthkN.m |
974 |
||
|
Max. lifting height of basic boom m |
12.1 |
||
|
Max. lifting height of boom m |
43.1 |
Deformation of the boom is not taken into consideration. |
|
|
Max. lifting height of jib m |
59.3 |
||
|
Working speed |
Max. hoist rope speed (main winch) m/min |
120 |
At 4th layer |
|
Max. hoist rope speed(auxiliary winch) m/min |
72 |
At 2nd layer |
|
|
Boom derricking times |
53 |
||
|
Boom extending times |
102 |
||
|
Slewing speed r/min |
0~1.8 |
||
|
Traveling specifications |
Max. traveling speed km/h |
73 |
|
|
Max. gradeability % |
34.7 |
||
|
Min. turning diameter m |
24 |
||
|
Min. ground clearance mm |
260 |
||
|
Limits for exhaust pollutants and smoke |
Meet with related standards |
GB3847-2005 GB17691-2005 (National stage III) |
|
|
Oil consumption per hundred kilometersL |
55 |
||
|
Weight specifications |
Deadweight in traveling condition kg |
43730 |
|
|
Complete vehicle kerb mass kg |
43600 |
||
|
Front axle load kg |
17600 |
||
|
Rear axle loadkg |
26000 |
||
|
Dimension specifications |
Overall dimensions (L×W×H)mm |
13930×2750×3800 |
|
|
Longitudinal distance between outriggersm |
5.95 |
||
|
Transversal distance between outriggers m |
(Fully extended outriggers: 6.9m; half extended outriggers: 4.8m) |
||
|
Boom length m |
11.4~43.0 |
||
|
Boom angle° |
-2～80 |
||
|
Jib length m |
9.5 、16 |
||
|
Offset° |
0 、 30 |
||
