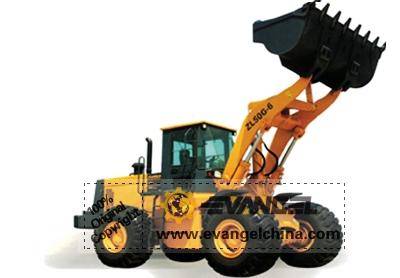

ZL50G-6 Wheel Loader
Features of Wheel Loader:
1. 4 forward and 3 reverse power shift transmission
2. KD switch for easy and efficient operation
3. Load-sensed full hydraulic steering system dual-pump confluent flow working hydraulic and steering system
4. Combined seal cylinder achieves higher seal performance and more reliability
Specifications of Wheel Loader:
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
8215(mm) |
|
2 |
Width(to outside of wheels) |
2800(mm) |
|
3 |
Bucket width |
2946(mm) |
|
4 |
Height(To the top of the cab) |
3450(mm) |
|
5 |
Wheel base |
3350(mm) |
|
6 |
Tread |
2200(mm) |
|
7 |
Min. ground clearance |
450(mm) |
|
Main Technical Specification |
||
|
1 |
Rated load |
5000(Kg) |
|
2 |
Operating weight |
16300KG |
|
3 |
Rated bucket capacity |
3.0(m3) |
|
4 |
Max. breakout force |
160kN |
|
5 |
Max. traction |
150kN |
|
6 |
Max. gradient ability |
300 |
|
7 |
Max. dump clearance |
3050(mm) |
|
8 |
Dump reach |
1107(mm) |
|
9 |
Dump angle at any position |
≥450 |
|
10 |
Digging depth(with bucket bottom horizontal) |
165(mm) |
|
11 |
Min. turning radius |
|
|
|
(1) Outside of bucket |
6675(mm) |
|
(2) Outside of rear wheel |
5879(mm) |
|
|
12 |
Pivot angle frame |
400 |
|
13 |
Oscillating angle of rear axle |
+13o |
|
14 |
Lifting time of bucket |
≤5.8(sec.) |
|
15 |
Lowering time of bucket |
≤3.8(sec.) |
|
16 |
Dumping time |
≤1.2(sec.) |
|
17 |
Traveling speed(Km/h)，4 forward and 3 reverse |
|
|
|
(1) 1st gear(F/R) |
6.7/6.7 |
|
(2) 2nd gear (F/R) |
12.2/12.2 |
|
|
(3) 3rd gear (F/R) |
25.6/25.6 |
|
|
(4) 4rd gear(F) |
35 |
|
|
Diesel Engine |
||
|
1 |
Model |
ShangChai C6121 engine |
|
2 |
Type |
Direct injection. Turbocharge. Water cooling |
|
3 |
Rated output |
162 (kW) |
|
4 |
Inter-bore of cylinder/stroke |
121/152(mm) |
|
5 |
Total exhaust of cylinder |
9.7260(L) |
|
6 |
Model of starting motor |
KB-24V |
|
7 |
Power of start motor |
7.5(KW) |
|
8 |
Voltage of starting motor |
24(V) |
|
9 |
Rated speed |
2200(r/min.) |
|
10 |
Max. Torque |
843±6%(N.m)/1400(r/min) |
|
11 |
Starting type |
Electric |
|
12 |
Min. specific fuel consumption |
230(g/Kw.h) |
|
13 |
Engine specific oil consumption |
0.95-1.77(g/Kw.h) |
|
14 |
Net weight |
960(Kg) |
|
Transmission System |
||
|
Torque Converter |
||
|
1 |
Model |
ZF technology WG200 |
|
2 |
Type |
3-elements.single stage |
|
3 |
Torque ratio |
2.55 |
|
4 |
Cooling type |
Pressure oil circulating |
|
Transmission case |
||
|
1 |
Model |
ZF technology WG200 |
|
2 |
Type |
power shift, spur gear constant-mesh |
|
3 |
Gear shift position |
4 Forward and 3 reverse gears |
|
Axle and Tire |
||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|
2 |
Gear ratio of main reducer |
4.625 |
|
3 |
Type of final reducer |
Single stage planetary |
|
4 |
Gear of ratio of final reducer |
4.9286 |
|
5 |
Total ratios |
22.795 |
|
6 |
Size of tire |
23.5-25-16PR |
|
Working Device Hydraulic System |
||
|
1 |
Model of oil pump |
CBGj 3100-S |
|
2 |
System pressure |
200(kgf/cm2) |
|
3 |
Model of Multi-way directional valve |
7130-B97(HUSCO) |
|
4 |
Pilot valve |
406-1044-1145(HUSCO) |
|
5 |
(D*L)Dimension of lifting cylinder |
Ф160*90*715(mm) |
|
6 |
(D*L)Dimension of tilting cylinder |
Ф180*90*530(mm) |
|
Steering System |
||
|
1 |
Type |
Middle articulated frame. Co-axis flow amp. Steering |
|
2 |
Model of steering pump |
CBGj2063/1016-XFS |
|
3 |
Model of redirector |
TLF1-E1000B+FKB6020 |
|
4 |
Model of priority valve |
YXL-F160L-N7-H |
|
5 |
System pressure |
16MPa |
|
6 |
Dimension of steering cylinder |
Ф90*45*400(mm) |
|
Brake System |
||
|
1 |
Type of traveling brake |
Caplier disc brake |
|
2 |
Air pressure |
7-8(kgf/cm2) |
|
3 |
Type of emergency brake |
Manual control cutting-off air brake |
|
4 |
Type of parking brake |
Drum brake |
|
Oil Capacity |
||
|
1 |
Fuel(diesel) |
250(L) |
|
2 |
Engine lubricating oil |
42(L) |
|
3 |
Oil for converter and gear box |
42(L) |
|
4 |
Oil for hydraulic system |
180(L) |
|
5 |
Oil for driving axles(F/R) |
20/20(L) |
