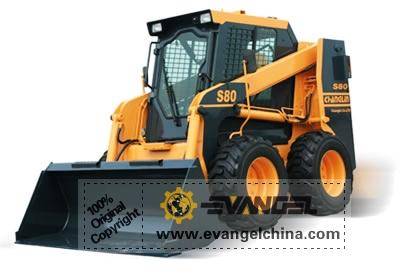

S80 Skid Steer Loader
Description of Skid Steer Loader:
A skid steer loader commonly known as a skid loader, is typically four-wheel drive vehicle and always be referred to as a kind of construction machinery/construction equipment.
Features of Skid Steer Loader:
1. Equipped with reliable CATERPILLAR 3306B license engine or genuine Cummins engine
2. 3 forward & 3 reverse power shift transmission
3. Bucket automatic leveling ability
4. Combined seal cylinder obtains high seal performance and more reliability
Applications of Skid Steer Loader:
As a type of construction machinery/construction equipment, skid steer loaders have a wide variety of applications, usually they can push material from one location to another, carry material in its bucket or load material into a truck or trailer in such construction sites as building, road-making , warehouse-building. In addition, Changlin skid steer loaders can work on the deck or in the cabin and job sites where does not allow large construction machinery.
Specifications of Skid Steer Loader:
|
Overall Dimension |
|||
|
1 |
Length(with bucket on ground) |
3270(mm) |
|
|
2 |
Width(to outside of wheels) |
1760(mm) |
|
|
3 |
Bucket width |
1850(mm) |
|
|
4 |
Height(To the top of the cab) |
1946(mm) |
|
|
5 |
Wheelbase |
1110(mm) |
|
|
6 |
Tread |
1454(mm) |
|
|
7 |
Min. ground clearance |
210(mm) |
|
|
Main Technical Specification |
|||
|
1 |
Rated load |
900(Kg) |
|
|
2 |
Operating weight |
3667KG |
|
|
3 |
Rated bucket capacity |
0.5(m3) |
|
|
4 |
Max. breakout force |
28kN |
|
|
5 |
Static tipping loads |
≥20kN |
|
|
6 |
Max. dump clearance |
2425(mm) |
|
|
7 |
Dump reach |
553(mm) |
|
|
8 |
Dump angle at any position |
≥400 |
|
|
|
Angle of departure |
300 |
|
|
8 |
Digging depth(with bucket bottom horizontal) |
0(mm) |
|
|
9 |
|
||
|
|
(1) Outside of bucket |
2030(mm) |
|
|
(2) Outside of front wheel |
1295(mm) |
||
|
|
(3) outside of rear frame |
1500(mm) |
|
|
10 |
Pivot angle frame |
400 |
|
|
11 |
Oscillating angle of rear axle |
+12o |
|
|
12 |
Lifting time of bucket |
≤4.8(sec.) |
|
|
13 |
Lowering time of bucket |
≤6.7(sec.) |
|
|
14 |
Dumping time |
≤2.1(sec.) |
|
|
15 |
|
||
|
|
(1) forward gear |
0～11 |
|
|
(2) reverse gear |
0～11 |
||
|
Diesel engine |
|||
|
1 |
Model |
Cummins B4.5-C80 0 |
|
|
2 |
Type |
Direct injection. Turbocharge. Water cooling |
|
|
3 |
Rated output |
59 (kW) |
|
|
4 |
Inter-bore of cylinder/stroke |
114/135(mm) |
|
|
5 |
Total exhaust of cylinder |
8.3 (L) |
|
|
6 |
Model of starting motor |
42MT |
|
|
7 |
Power of start motor |
8.2(KW) |
|
|
8 |
Voltage of starting motor |
24(V) |
|
|
9 |
Rated speed |
2200(r/min) |
|
|
10 |
Max. Torque |
998(N.M) |
|
|
11 |
Starting type |
Electric |
|
|
12 |
Min. specific fuel consumption |
207(g/Kw.h) |
|
|
13 |
Engine specific oil consumption |
0.9-1.6(g/Kw.h) |
|
|
14 |
Net weight |
617(kg) |
|
|
Power train |
|||
|
1. Driving system |
|||
|
1 |
Model |
Hydrostatic driving |
|
|
2 |
Type |
Driving pump＋driving motor＋reducer |
|
|
3 |
Torque ratio |
2.55 |
|
|
4 |
Cooling type |
Pressure oil circulating |
|
|
2. Transmission case |
|||
|
1 |
Model |
CHANGLIN Z50H.4 |
|
|
2 |
Type |
Power shift, spur gear constant- mesh |
|
|
3 |
Gear shift position |
3 Forward and 3 reverse gears |
|
|
3. Axle and Tire |
|||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|
|
2 |
Gear ratio of main reducer |
4.625 |
|
|
3 |
Type of final reducer |
Single stage planetary |
|
|
4 |
Gear of ratio of final reducer |
4.9286 |
|
|
5 |
Gear ratio |
22.795 |
|
|
6 |
Max. drawing force |
137kN |
|
|
7 |
Size of tire |
23.5-25-16PR |
|
|
Working Device Hydraulic System |
|||
|
1 |
Model of oil pump |
CBGj 3100 |
CBGj3100/2024 |
|
2 |
System pressure |
200(kgf/cm2) |
|
|
3 |
Model of distribution valve |
HUSCO |
|
|
4 |
Pilot valve |
HUSCO |
|
|
5 |
(D*L)Dimension of lifting cylinder |
Ф160*90*740(mm) |
|
|
6 |
(D*L)Dimension of tilting cylinder |
Ф180*90*500(mm) |
|
|
SteeringSystem |
|||
|
1 |
Type |
Middle articulated frame. Co-axis flow amp. Steering |
|
|
2 |
Model of steering pump |
CBGj 2063/ Gb 1016 |
|
|
3 |
Model of redirector |
Danfoss OSPB1000LS |
|
|
4 |
System pressure |
14MPa |
|
|
5 |
Dimension of steering cylinder |
Ф90*45*435(mm) |
|
|
Brake System |
|||
|
1 |
Type of travelingbrake |
Caplier disc brake |
|
|
2 |
Air pressure |
7-8(kgf/cm2) |
|
|
3 |
Type of emergency brake |
Manual control cutting-off air brake |
|
|
4 |
Type of parking brake |
inner expand hoof |
|
|
Oil Capacity |
|||
|
1 |
Fuel(diesel) |
250(L) |
|
|
2 |
Engine lubricating oil |
20(L) |
|
|
3 |
Oil for converter and gear box |
42(L) |
|
|
4 |
Oil for hydraulic system |
180(L) |
|
|
5 |
Oil for driving axles(F/R) |
36(L) |
|
