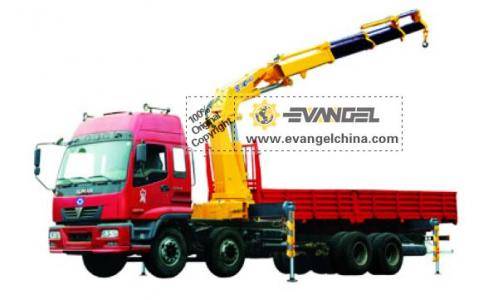

SQ12ZK3Q Truck-Mounted Crane
Parameter
| Unit | ||
|---|---|---|
|
Max Lifting Moment |
30 |
t.m |
|
Max Lifting Capacity |
12000 |
kg |
|
Recommend Power Needed At Recommend Oil Flow |
32 |
kw |
|
Max Oil Flow of Hydraulic System |
55 |
L/min |
|
Rated Pressure Of Hydraulic System |
30 |
MPa |
|
Oil Tank Capacity |
160 |
L |
|
Rotation Angle |
(360°)All Rotation |
度 |
|
Crane Weight |
4130 |
kg |
|
Installation Space |
1400 |
mm |
|
Choice of Chassis |
DFL1250A9 东风天龙； DFL1311A3东风 ； CA1240PK2L7T4EA81青岛 EQ5201GFJ6东风； BJ1317VNPJJ-S5北汽福田； BJ5253ZKPJJ北汽福田； DFL1253AX东风； |
|
|
Working radius (m) |
2.5 |
4.2 |
6.02 |
7.9 |
9.78 |
|
Lifting capacity (kg) |
12000 |
6900 |
4560 |
3410 |
2650 |
