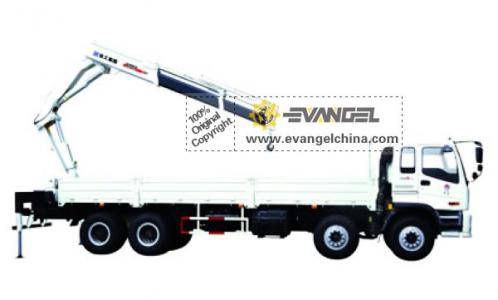

SQ10ZK3Q Truck-Mounted Crane



Parameter



Max Lifting Moment

20

t.m

Max Lifting Capacity

10000

kg

Recommend Power Needed At Recommend Oil Flow

28

kw

Max Oil Flow of Hydraulic System

40

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

160

L

Rotation Angle

(360°)All Rotation

Crane Weight

3477

kg

Installation Space

1150

mm

Choice of Chassis

DFL1250A9 东风天龙;CA1240PK2L7T4EA81青岛;HFC1202KR1K3江淮;EQ5201GFJ6东风;CA1200PK2L7T3EA80解放;BJ1317VNPJJ-S5北汽福田;BJ5253ZKPJJ北汽福田;CA1253P7K2L11T1E 解放;EQ1252GFJ东风;DFL1253AX东风;

SQ10ZK3Q Lifting capability diagram



Working radius (m)

2

4.17

5.99

7.87

9.75

Lifting capacity (kg)

10000

 4600

3050

2280

1700
