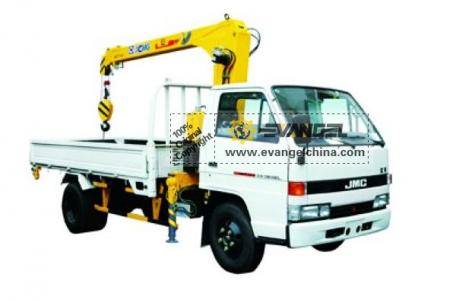

SQ2SK1Q/K2Q Truck-Mounted Crane



Parameter



Model

SQ2SK1Q/SQ2SK2Q

Unit

Max Lifting Capacity

2100

kg

Max Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max Oil Flow of Hydraulic System

20

L/min

Max Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

All Rotation

Crane Weight

1172/758/1316

kg

Installation Space

850

mm

Choice of Chassis

EQ1092FJ1东风;EQ1092FJ东风;NKR77PLLWCJAY 庆铃;EQ1060GJ20D3东风;JX1060TSG23江铃;JX1050TGB23江铃;HFC1065KRT江淮

SQ2SK1Q Lifting capability diagram

Working radius (m)

2

3.07

5.4

Lifting capacity (kg)

2100

100

400

SQ2SK2Q Lifting capability diagram

Working radius (m)

2

3.07

5.4

7.73

Lifting capacity (kg)

2100

1000

400

255
