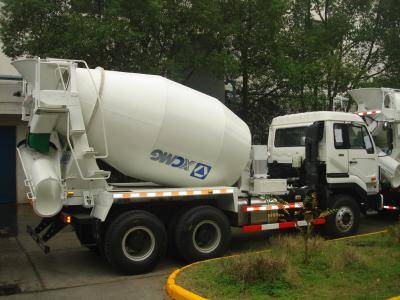

Model |
NXG3251D3AZCX |
|
Drive model |
6×4 |
|
Max speed（km/h） |
80 |
|
Max grade ability (%) |
20 |
|
Max slope(%) |
20 |
|
Oil tank capacity (L) |
240 |
|
Min ground clearance (mm) |
245 |
|
Electrical system(v) |
24 |
|
Operating weight(kg) |
9200 |
|
Rated loader weight (kg) |
15600 |
|
Rated weight(kg) |
24995 |
|
Upload specifications |
|
|
Lenth (mm) |
8430 |
|
width(mm) |
2487 |
|
Height(mm) |
2850 |
|
Wheel base (mm) |
3825+1300 |
|
Frame(mm) |
320 |
|
板簧 |
10/10 |
|
Cab |
RUILONG |
|
Engine |
SC9DK290Q3B1/YC6A270-33 |
|
Transmission |
9JS119 |
|
Front axle |
6.5T |
|
Rear axle |
153 |
|
tyre |
10.00R20 |
