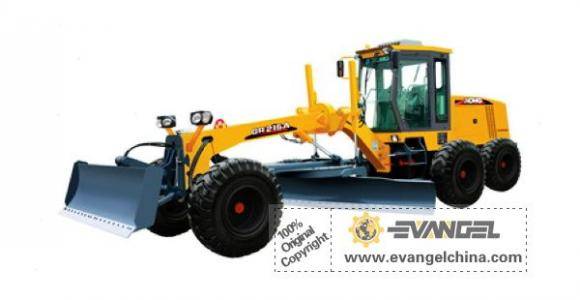

GR215A Motor Grader
| Basic specification | |
|---|---|
| Engine model | QSB6.7 6CTA8.3 |
| Rated power/speed | 164kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 9180×2625×3300mm |
| Operating weight(Standard) | 16100kg |
|
Performance specification |
|
| Travelling speed ,forward | 5、8、11、19、23、38 km/h |
| Travelling speed ,reverse | 5、11、23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3～1.8MPa |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width ×height | 4270×610mm |
All technical parameters are subject to change without prior notice because of technical improvements.
