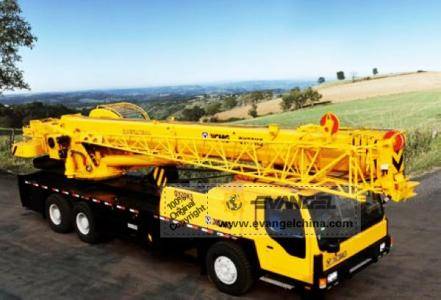

QY30K5 Truck Crane
QY30K5 truck crane adopts K series mature technique, new materials and technology, effectively improving the product performance and reliability. The application of the innovative techniques, such as variable lifting hydraulic system, new air conditioning, and five-segment octagon big fillet retractable jib, greatly improves the performance and grade of the machine. The modern design and reasonable layout ensure excellent travel and lifting performance.
Parameter
|
Dimension |
Unit |
QY30K5 |
|
Overall length |
mm |
12070 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
3390 |
|
Weight |
|
|
|
Total weight in travel |
kg |
32400 |
|
Front axle load |
kg |
7000 |
|
Rear axle load |
kg |
25400 |
|
Power |
|
|
|
Engine model |
|
WD615.329 / SC8DK280Q3 (domestic III) |
|
Engine rated power |
kW/(r/min) |
206/2200 |
|
Engine rated torque |
N.m/(r/min) |
1160/1400 1112/1400 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
75 |
|
Min. turning diameter |
m |
22 |
|
Min. ground clearance |
mm |
291 |
|
Approach angle |
° |
19 |
|
Departure angle |
° |
13 |
|
Max. grade ability |
% |
30 |
|
Fuel consumption for 100km |
L |
40 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
30 |
|
Min. rated working radius |
mm |
3000 |
|
Turning radius at turntable tail |
m |
3.065 |
|
Max. lifting torque |
kN.m |
1025 |
|
Base boom |
m |
10.1 |
|
Fully extended boom |
m |
38.5 |
|
Fully extended boom+ jib |
m |
46.8 |
|
Longitudinal outrigger span |
m |
5.85 |
|
Lateral outrigger span |
m |
6 |
|
Working speed |
|
|
|
Boom luffing time |
s |
68 |
|
Boom full extension time |
s |
150 / 140 |
|
Max. swing speed |
r/min |
≥2.5 |
|
Max. speed of main winch (single rope) |
m/min |
≥ 120 |
|
Max. speed of aux. winch (single rope) |
m/min |
≥ 120 |
