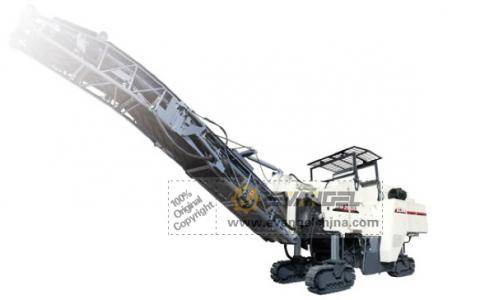

XM200E Cold Milling Machine


XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.

The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic

⊙High strength milling rotor drive by belt ,reliable and high efficiency.

⊙Four tracks driving system ,power traction ,four kids of steering modes ,flexible to travel.

⊙Full automatic power adjusting system ,realizing the automatic power distribution between the milling power and driving power.

⊙Advanced automatic control system of milling depth ,easy operation and reliable.

⊙Electrical control engine Nation Ⅲ emission standard ,reliable and economical efficiency of fuel comsuption.

⊙All hydraulic components and transmission parts adopts international well-known brands ,advanced performance and reliable operation.

Model
XM200E
Max. milling with
mm
2000
Max. milling depth
mm
300
Milling wheel
Number of tools
162
Drum diameter with tools
mm
980
Engine
Model
DHP12
Rated power
kW
353
Rated speed
rpm
2100
Specifications
Operating speed
m/min
0~34
Travel speed
km/h
0~5
Ground clearance
%
80
Ground clearance
mm
≤320
Operating weight
kg
28500
Volume
Fuel tank
L
800
Hydraulic oil tank
L
300
Water tank
L
2300
Conveyor
Width
mm
800
Measurement
Overall machinery LxWxH
mm
6750×2500×2900
Conveyor LxWxH
mm
8000×1150×900
Travel mode

Track



All technical parameters are subject to change without prior notice because of technical improvements.
