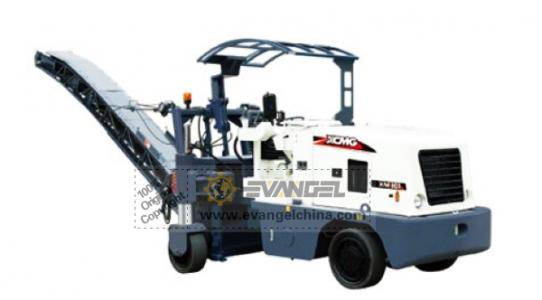

XM101K Cold Milling Machine



XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.

The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic

⊙The milling drum is driven by two four-link belts with automatic tensioning device.

⊙The moving system is the four-wheel fully hydraulic driving .

The differential lock makes uniform driving forces even on the slippery road surface.

⊙The machine has the advantages of being suitable for different milling materials and milling depth,optimizing power output automatic adjusting function and implementing maximization of the productivity.

⊙The brake system implements the travelling brake by the reverse dragging of the hydraulic system. The multi-disc typed brake is arranged on the rear wheel reducer to implement the parking brake .

⊙The automatic depth control (selectable )adopts the contact-typed or non contact-typed sensor for detection with digitally displayed milling depth.



Model

XM101K

Max. milling with
mm
1020

Max. milling depth
mm
300
Milling wheel
Number of tools

84
Drum diameter with tools
mm
930
Engine
Model

SC8D220G2B1
Rated power
kW
162
Rated speed
rpm
2200
Specifications
Operating speed
m/min
0~30
Travel speed
km/h
0~7
Ground clearance
%
60
Ground clearance
mm
≤200
Operating weight
kg
17000
Volume
Fuel tank
L
380
Hydraulic oil tank
L
160
Water tank
L
680
Conveyor
Width
mm
450
Measurement
Overall machinery LxWxH
mm
4815×2560×3730
Conveyor LxWxH
mm
7168X720X830
Travel mode

Tire



 All technical parameters are subject to change without prior notice because of technical improvements.
