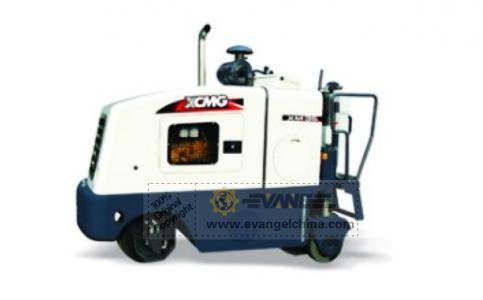

XM35 Cold Milling Machine



XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.

The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic

⊙Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.

⊙Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.

⊙The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.

⊙The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.

⊙The imported hydraulic elements have high working reliability.

⊙Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.

⊙Hydraulic handheld breakers and rumble strip equipment can be selected.



Model

XM35

Max. milling with
mm
350

Max. milling depth
mm
60
Milling wheel
Number of tools

38
Drum diameter with tools
mm
460
Engine
Model

YC4D80-T11
Rated power
kW
56
Rated speed
rpm
2200
Specifications
Operating speed
m/min
0~25
Travel speed
km/h
0~6
Ground clearance
%
20
Ground clearance
mm
≤80
Operating weight
kg
4350
Volume
Fuel tank
L
90
Hydraulic oil tank
L
70
Water tank
L
220
Conveyor
Width
mm

Measurement
Overall machinery LxWxH
mm
2820×1225×2050
Conveyor LxWxH
mm

Travel mode

Tire



All technical parameters are subject to change without prior notice because of technical improvements.
