CDQ24 Aerial Platform Fire Truck

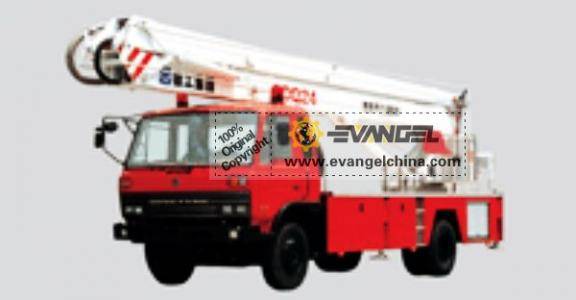

CDQ24 Aerial Platform Fire Truck has 3-section folding boom, 24.5m of rated working height, 14.3m of working radius, 30L/s of rated water monitor flow, and 270 kg of rated load on the platform. The working platform is leveled by combined mechanism of rod and chain. A flap in front of the platform is for easy access to object rescued, a falling device is equipped for persons rescued arriving the ground from the platform safely.
Parameter
1、Main Technical Data in Travel Configuration
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
11380 |
|
|
Overall height |
mm |
3640 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel space |
mm |
4700 |
||
|
Weight |
Gross weight |
kg |
11510 |
|
|
Axle load |
Front axle |
kg |
3700 |
|
|
Rear axle |
kg |
7810 |
||
|
Travel parameter |
Chassis |
Dongfeng EQ1118G6DJ15 |
||
|
Engine model |
EQB160-10 Cummins EQB160-10 |
|||
|
Power |
kw/(r/min) |
118/2600 |
||
|
Torque |
N·m/(r/min) |
559/1500～1700 |
||
|
Max. travel speed |
km/h |
≥85 |
||
|
Min. turning diameter |
m |
≤18 |
||
|
Approach angle |
° |
≥34 |
||
|
Departure angle |
° |
≥10.5 |
||
|
Braking distance (at speed 30km/h ) |
m |
≤10 |
||
|
Min. ground clearance |
mm |
248 |
||
|
Max. grade-ability |
% |
≥27 |
||
2、Main Technical Data for Operation
|
Category |
Item |
Unit |
Parameter |
|||
|
Main performance |
Rated working height |
m |
24.5 |
|||
|
Rated load of the platform |
kg |
270 |
||||
|
Max. working radius |
m |
14.3 |
||||
|
Boom |
Boom length |
1st boom section |
mm |
9580 |
||
|
2nd boom section |
mm |
10290 |
||||
|
3rd boom section |
mm |
2500 |
||||
|
Elevating range |
Angle of 1st boom section to horizontal |
° |
1～80 |
|||
|
Angle of 2nd boom section to horizontal |
° |
0～75 |
||||
|
Angle of 2nd boom sectionto 3rd boom section |
° |
78～180 |
||||
