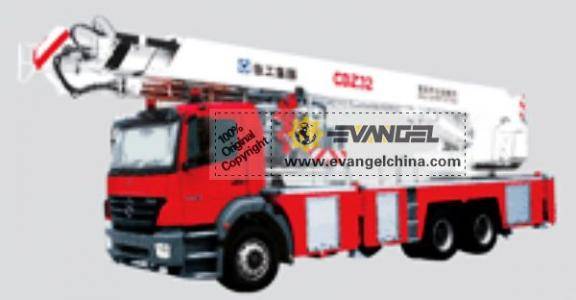

CDZ32 Aerial Platform Fire Truck
CDZ32 is Fire Truck with telescopic boom plus folding jib and additional telescopic rescue ladder. The working cage is articulated at the end of the jib with rated load 400kg. The water pipeline in fire fighting system installed along the right side of the telescopic boom can telescope with the telescopic boom. Operation of the vehicle can be performed respectively on the turntable and on the working cage. Double cylinders for front support elevating, H-shaped outriggers and 360°full swing are available. Lower structure consists of general chassis and sub frame. Safety devices are well equipped.
Parameter
1、Main Technical Data in Travel Configuration
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
12000 |
|
|
Overall height |
mm |
3980 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel space |
1st, 2nd axle |
mm |
4450 |
|
|
2nd, 3rd axle |
mm |
1450 |
||
|
Weight |
Gross weight |
kg |
25230 |
|
|
Axle load |
Front axle |
kg |
6480 |
|
|
Mid/Rear axle |
kg |
18750 |
||
|
Travel parameter |
Chassis |
Benz 2628 |
||
|
Engine model |
MB OM906LA |
|||
|
Power |
kW/(r/min) |
205/2300 |
||
|
Torque |
N·m/(r/min) |
1100/1250～1500 |
||
|
Max. travel speed |
km/h |
≥85 |
||
|
Min. turning diameter |
m |
≤24 |
||
|
Approach angle |
° |
≥26 |
||
|
Departure angle |
° |
≥10 |
||
|
制动距离(车速为30km/h) Braking distance (at speed 30km/h ) |
m |
≤9.5 |
||
|
最小离地间隙 Min. ground clearance |
mm |
339 |
||
|
最大爬坡度Max. grade ability |
% |
≥25 |
||
2、Main Technical Data for Operation
|
Category |
Item |
Unit |
Parameter |
|
|
Main performance |
Rated working height |
m |
32 |
|
|
Rated load on the platform |
kg |
400 |
||
|
Max. rated working radius |
m |
17 |
||
|
Telescopic boom length |
m |
11.2～26.2 |
||
|
Folding jib length |
m |
5 |
||
|
Outrigger span (longitudinal×lateral) |
m |
5.5×5.5 |
||
|
Elevating range |
° |
-3～80 |
||
