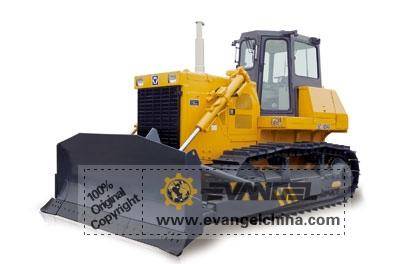

TY230 Bulldozer
Features:
•It adopts Cummins NT855-C280S10 turbocharged diesel engine, featuring strong power and superior performance.
•The new hexahedron cab has beautiful appearance, wide view, vibration absorption seal, and comfortableness.
•The electronic monitoring system with sound/light alarm function is very sensitive and the visual monitoring is very convenient.
•The cab seat can automatically adjust the angle and height, and it has the ergonomically designed operation system, which makes it more convenient and easier to operate.
•The independent ROPS device improves operation safety.
•It can be equipped with straight tilt blade, U-shaped blade, angle blade, single/3-tooth scarifier, applicable to various work conditions.
•The drive parts and wear parts made by military technologies feature high strength, good toughness and high wear resistance.
• The travel system adopts sprayed beam swing type, equalizing bar semi-rigid suspension structure, and the ground contact length of the track is also extended, which ensures good buffering effect during high-speed travel. It features smooth travel, comfort operation, and good adhesiveness.
Parameter:
Operating weight
|
Bare machine |
19950kg |
|
|
With straight tilt blade |
25740kg |
|
|
With straight tilt blade,scarifier |
28460kg |
|
|
Travel speed |
Gear |
1/2/3 |
|
Forward |
0-3.8/0-6.8/0-11.3(kw/h) |
|
|
Reverse |
0-4.9/0-8.2/0-13.6(km/h) |
|
|
Max.traction |
221kN |
|
|
Ground contact length |
2840mm |
|
|
Ground pressure |
0.076MPa |
|
|
Min.ground clearance |
405mm |
|
|
Min.turning radius |
3.3m |
|
|
Track center distance |
2000mm |
|
|
Single (straight tilt)blade capacity |
7.8m3 |
|
|
Productivity (haul distance 30m) |
505m3/h |
|
|
Max.gradeability |
30° |
|
|
Rated engine power/speed |
169kw(230hp/2,000rpm) |
|
|
Dimension(L×W×H) |
5,459×3,725×3,380mm (incl.straight tilt blade) |
|
|
6,790×3,725×3,472mm (incl.straight tilt blade,3-grouser scarifier and ROPS) |
||
| Model | Cummins NT855-C280S100 |
| Type | Inline, water-cooled, 4-stroke, direct injection, turbocharging |
| Cylinder quty.- bore×stroke | 6-139.7mm×152.4mm |
| Piston displacement | 14.01L |
| Min. oil consumption | 231g//kW.h |
| Rated power | 169kW±5% |
| Rated speed | 2000r/min |
| Max.output torque | 1033N.m/1400r/min |
| Torque reserve factor | 1.25 |
| Charging generator | silicon rectification generator,24V,35A |
| Start mode | Start motor, 24V, 11KW |
| Battery | (12V-195Ah)×2 |
| Hydraulic torque converter | 3 components, single-stage, single phase |
| Transmission | Planetary gear, multi-disc clutch, hydraulic integrated forced lubrication |
| Main drive | Spiral bevel gear, first-stage speed reduction, splash lubrication |
| Steering clutch | Wet, multi-disc, spring-pressed, hydraulic release |
| Steering brake | Wet, float, direct clutch, hydraulic boost |
| Final drive | 2-stage spur gear reduction, splash lubrication |
| Type | Sprayed beam swing type, equalizing beam suspension structure |
| Track | Single grouser combined |
| Grouser height | 72mm |
| Amt.of track shoe | 39×2 |
| Track shoe width | 560mm、610mm、660m |
| Ground contact length of track | 2840mm |
| Pitch | 216mm |
| Amt.of carrier wheel | 2/each side 2 |
| Amt.of supporting wheel | 7/each side 7 |
| Working oil pump | PAL.160 gear pump |
| Cylinder | Double acting piston type |
| Max.working oil pressure | 13.7Mpa |
| Blade hoisting cylinder bore×quty. | 120mm×2 |
| Tilting cylinder inner bore×quty. | 200mm×1 |
| Soil loosening cylinder inner bore×quty. | 150mm×4(1-grouser) |
| 150mm×2(3-grouser) | |
| Control valve | Spool |
| Speed regulation | Manual operation, hydraulic power shifting |
| Steering & brake | Hydraulic boosting |
| Throttle control | Hand throttle speed up and pedal reduction |
| Blade control | Manual, hydraulic servo follow-up |
| Scarifier control | Manual, hydraulic servo follow-up |
| Blade type | Straight tilt blade | Angle blade |
| Blade size(W×H) | 3,725×1,390mm | 4365×985mm |
| Max.lifting height | 1210mm | 1292mm |
| Max.tilting range | 735mm | |
| Max.cutting depth | 540mm | 536mm |
| Cutting angle(°) | 55° | 55° |
| Gradeability | 30° | 30° |
| Scarifier | 3-grouser | Single grouser |
| Max. scarification depth | 665mm | 695mm |
| Max.lifting height of scarifier | 555mm | 515mm |
| Scarifier weight | 2,900kg | 3,600kg |
