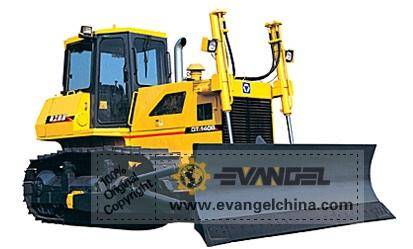

DT140B Bulldozer

Features:

•Shanghai 6135AK-10 engine, new type of suspension spring support, good vibration absorption effect.
•It adopts helical cylindrical gear drive transfer case and transmission, the transmission features 5 forward gears and 4 reverse gears, mechanical control, gear shift collar, featuring high drive efficiency and low noise.
•It adopts constant open main clutch with multi-disc wet friction disc and hydraulic boosting and the constant engaged steering clutch with multi-disc wet friction disc, which is convenient to operate.
•The final drive adopts 2-stage straight teeth and large displacement gear reduction for great traction force.
•The bulldozing work device adopts hydraulic system of pilot control which is easy to operate with less effort; the oil cylinder is front-installed which reduces the system pressure; the control valve is mounted outward; the big oil tank improves cooling effect and the reliability of hydraulic system.
•The hexahedron cab and full closed cover, the patented appearance, heating ventilation, wide view, and convenient maintenance.
•The machine has good overall configuration, compact structure, reasonable gravity distribution, and good stability; the machine body and undercarriage has good buffering effect.
•The optional devices include automatic oil filler, automatic track tension device, air conditioner without freon, scarifier, etc.

Parameter:

Items	Unit	Parameters
Engine Model		6135AK-10
Rated speed	r/min	1800
Rated power	kW	114
Operating weight	kg	17,800
Operating weight（incl. scarifier）	kg	19,400
Max.traction	kN	141
Ground pressure	kPa	≤68
Track shoe width	mm	500
Gradeability
Longitudinal	°	30
Transverse	°	25
Min.ground clearance	mm	350
Dimension（incl. scarifier）L×W×H	mm	6,320×3,762×3,114
5 Forward gears, 4 reverse gears	km/h	2.52~10.61
Travel speed	km/h	3.53~10.53
Angle blade width×height	mm	3,762×1,048
Max.lifting height	mm	1,000
Max.cutting depth	mm	400
Horizontal slewing angle of angle blade	°	+/-25
Bulldozing force	N	≤24
Scarifier digging angle	°	50
Max. scarification depth	mm	500
Max.lifting height	mm	510
Scarifier teeth	piece	3
