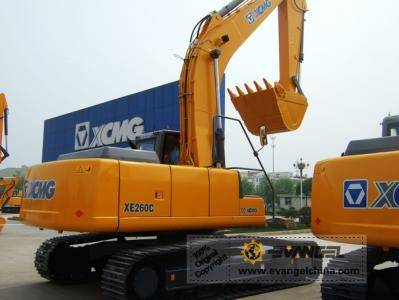

XE260C Excavator
Parameter:
|
Model |
XE260C |
||
|
Bucket capacity |
m3 |
1.1 |
|
|
Standard bucket width |
mm |
1,356 |
|
|
Operation weight |
kg |
24,670 |
|
|
Dimension(in transportation) |
Overall length |
mm |
10,160 |
|
Overall width |
mm |
2,990 |
|
|
Overall height |
mm |
3,050 |
|
|
Min. clearance |
mm |
485 |
|
|
Engine |
Model |
CC-6BG1TRP |
|
|
Total displacement |
L |
6.494 |
|
|
Rated output power |
KW/rpm |
125/2100 |
|
|
Digging performance |
Max. digging height |
mm |
9,670 |
|
Max. dumping height |
mm |
6,795 |
|
|
Max. digging depth |
mm |
6,920 |
|
|
Max. vertical digging depth |
mm |
6,165 |
|
|
Max. digging radius |
mm |
10,270 |
|
|
Boom deflection angle |
° |
|
|
|
Min. slew radius |
mm |
3,870 |
|
|
Min. rear slew radius |
mm |
2,940 |
|
|
Bucket digging force |
kn |
163 |
|
|
Track type |
Steel |
||
|
Track width |
mm |
600 |
|
|
Travel System |
Track length |
mm |
4,640 |
|
Wheel base |
mm |
3,842 |
|
|
Track gauge |
mm |
2,590 |
|
|
Travel speed (Gear I/II) |
km/h |
5.5/3.5 |
|
|
Gradeability |
% |
70 |
|
|
Slew speed |
rpm |
12.1 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
|
|
Bulldozing plate height |
mm |
|
|
|
Lifting distance |
mm |
|
|
|
Hydraulic pump type |
Variable pump×2 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Fuel tank capacity |
L |
400 |
|
|
Hydraulic oil tank capacity |
L |
240 |
|
