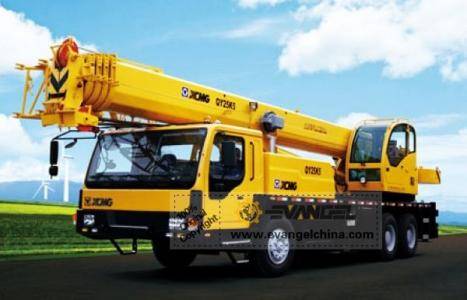

QY25K5 Truck Crane
Parameter
|
Classificatory |
Item |
Unit |
Parameter |
|
|
Outline dimension |
Overall length |
mm |
12000 |
|
|
Overall width |
mm |
2500 |
||
|
Overall height |
mm |
3380 |
||
|
Mass |
Total mass in travel state |
kg |
31000 |
|
|
Axle load |
Front Axle |
kg |
6440 |
|
|
Rear Axle |
kg |
24600 |
||
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
75 |
|
Turning diameter |
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
260 |
||
|
Approach angle |
(°) |
16 |
||
|
Departure angle |
(°) |
13 |
||
|
Braking distance (at speed of 30km/h) |
m |
10 |
||
|
Max. grade-ability |
％ |
30 |
||
|
Fuel consumption for 100km |
L |
37 |
||
|
Power |
Engine rated output |
kW/(r/min.) |
206/2200 |
|
|
Engine rated torque |
N.m/(r/min.) |
1112/1400 |
||
|
Engine rated speed |
rpm. |
2200 |
||
Main Technical Data for Lifting Operation
|
Classificatory |
Item |
Unit |
Parameter |
||
|
Lifting performance |
Max. total rated lifting capacity |
t |
25 |
||
|
Min. rated working radius |
m |
3 |
|||
|
Turning radius at turntable tail |
m |
3.065 |
|||
|
Max. load moment |
Base boom |
kN.m |
961 |
||
|
Fully extended boom |
kN.m |
450 |
|||
|
Fully-extend boom+Jib |
kN.m |
436 |
|||
|
Outrigger span |
Longitudinal |
m |
4.8 |
||
|
Lateral |
m |
6.0 |
|||
|
Lifting height |
Base boom |
m |
10.2 |
||
|
Fully extended boom |
m |
38.6 |
|||
|
Fully extended boom + Jib |
m |
47.6 |
|||
|
Working speed |
Boom elevating time |
Boom raising |
S |
75 |
|
|
Boom telescopingtime |
Boom full extension |
S |
150 |
||
|
Max. swing speed |
r/min |
2.5 |
|||
|
Outrigger telescoping time |
Outrigger beam extending/retracting synchronously |
S |
35/30 |
||
|
Outrigger jack extending/retracting synchronously |
S |
40/35 |
|||
|
Hoist speed
(single line) |
Main winch |
Full load |
m/min |
75 |
|
|
No load |
m/min |
125 |
|||
|
Auxiliary winch |
Full load |
m/min |
75 |
||
|
No load |
m/min |
125 |
|||
